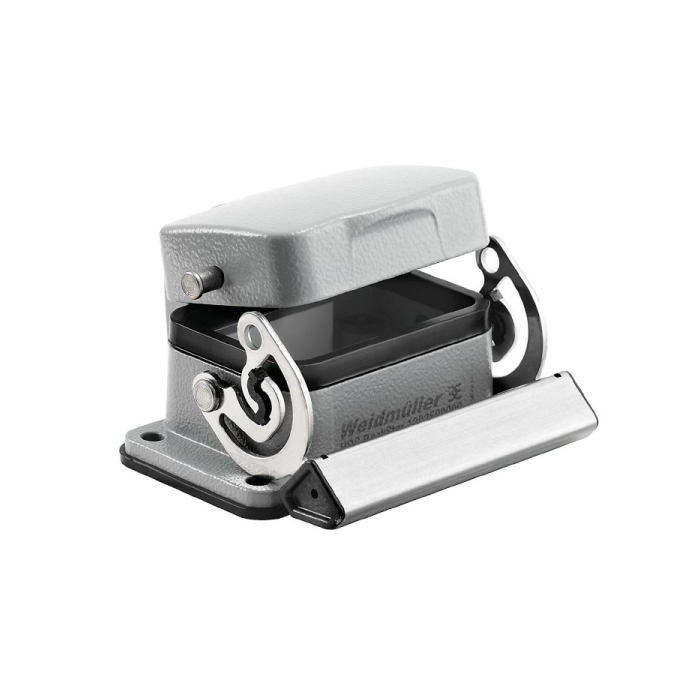

HDC 06B ADLU

ZAR 455.98
Out of stock
SKU
1202500000

HDC 06B ADLU:

  • The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
  • The beautifully built interlock mechanism is made of stainless steel.
  • This ensures a lengthy lifespan with strong corrosion and impact resistance.
  • The housing interlock system offers comprehensive safety.
  • Our proprietary spring system secures the housing interlock, preventing accidental opening.
  • The laser marking enables easy and quick identification.
  • Laser-marked housings provide for easy product identification and positioning.
  • Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.

Specifications dimensions and weights:

  • Height: 47 mm.
  • Height (inches): 1.85 inch.
  • Width: 68 mm.
  • Width (inches): 2.677 inch.
  • Mounting dimension - height: 32 mm.
  • Mounting dimension - width: 70 mm.
  • Net weight: 182 g.

Temperatures:

  • Limit temperature: -40 °C - 125 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3.
  • SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
  • Chemical resistance:
    • Substance: Acetone.
    • Chemical resistance: Resistant.
    • Substance: Drilling oil.
    • Chemical resistance: Resistant.
    • Substance: Diesel.
    • Chemical resistance: Resistant.
    • Substance: Ethyl alcohol.
    • Chemical resistance: Resistant.
    • Substance: Transmission oil.
    • Chemical resistance: Resistant.
    • Substance: Hydraulic oil.
    • Chemical resistance: Resistant.
    • Substance: Coolant.
    • Chemical resistance: Resistant.
    • Substance: Petroleum benzine.
    • Chemical resistance: Resistant.
    • Substance: Sweat.
    • Chemical resistance: Resistant.
    • Substance: Premium gasoline.
    • Chemical resistance: Conditionally resistant.
    • Substance: Water.
    • Chemical resistance: Resistant.
    • Substance: UV.
    • Chemical resistance: Unstable.
    • Substance: Ozone.
    • Chemical resistance: Unstable.

eshop_Filter_00_General:

  • Weidmüller class short: Housing.
  • Weidmüller class target channel: Housing (industry plug-in connectors).

eshop_Filter_01_02_Connectors:

  • Product type: Enclosures.

Dimensions:

  • Height of base B1: 6 mm.
  • Height of housing B: 29 mm.
  • Hole pitch length A2: 70 mm.
  • Total length housing: 60 mm.
  • Width base C1: 45 mm.
  • Width housing C: 43 mm.

General data:

  • EMC housings: No.
  • Housing main material: diecast aluminium.
  • Material of locking element: Stainless steel, rust-proof.
  • Protection degree: IP65 (in plugged condition).
  • Surface finish: Powder coating.
  • Tightening torque: 1.2 Nm.

Version:

  • BG: 3.
  • Clamp version: End-locking clamp.
  • Colour (RAL): RAL 7035.
  • Cover: without cover.
  • Design: Standard.
  • Design of housing: Bulkhead housing.
  • Design of locking system: End-locking clamp, lower side, End-locking clamp not replaceable.
  • Sealing: NBR.
  • Size: 3.
  • Suitable for ModuPlug®: Yes.
  • Tightening torque: 1.2 Nm.
  • Top part/bottom part/lid: lower part.
  • Type: Bulkhead (feed-through).

Important note:

  • Product information: When mounting the housings, make sure that the flat gasket is correctly seated.
