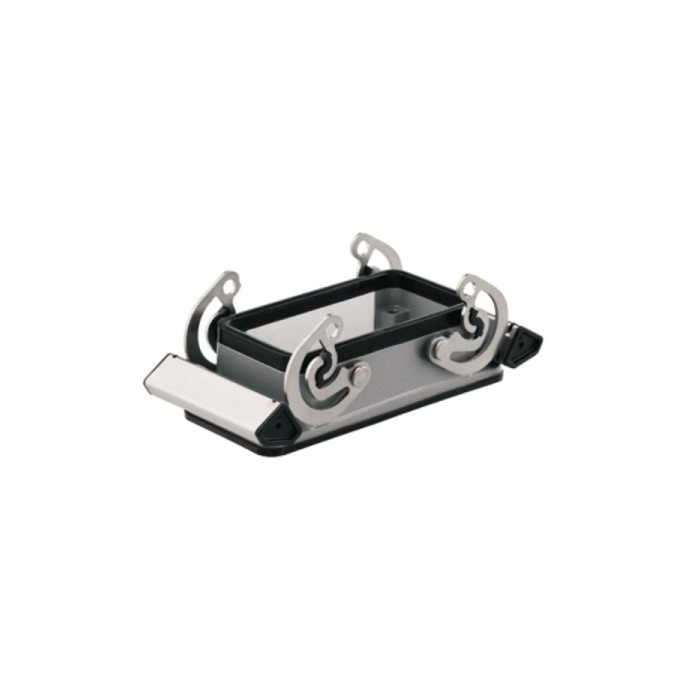

HDC 10B ABU

ZAR 368.85
Out of stock
SKU
1205000000

HDC 10B ABU:

  • The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
  • The beautifully built interlock mechanism is made of stainless steel.
  • This ensures a lengthy lifespan with strong corrosion and impact resistance.
  • The housing interlock system offers comprehensive safety.
  • Our proprietary spring system secures the housing interlock, preventing accidental opening.
  • The laser marking enables easy and quick identification.
  • Laser-marked housings provide for easy product identification and positioning.
  • Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.

Specifications dimensions and weights:

  • Height: 29.3 mm.
  • Height (inches): 1.154 inch.
  • Width: 55 mm.
  • Width (inches): 2.165 inch.
  • Mounting dimension - height: 32 mm.
  • Mounting dimension - width: 83 mm.
  • Net weight: 146  g.

Temperatures:

  • Limit temperature: -40 °C - 125 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1.
  • SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
  • Chemical resistance:
    • Substance: Acetone.
    • Chemical resistance: Conditionally resistant.
    • Substance: Drilling oil.
    • Chemical resistance: Resistant.
    • Substance: Diesel.
    • Chemical resistance: Resistant.
    • Substance: Ethyl alcohol.
    • Chemical resistance: Resistant.
    • Substance: Transmission oil.
    • Chemical resistance: Resistant.
    • Substance: Hydraulic oil.
    • Chemical resistance: Resistant.
    • Substance: Coolant.
    • Chemical resistance: Resistant.
    • Substance: Petroleum benzine.
    • Chemical resistance: Resistant.
    • Substance: Sweat.
    • Chemical resistance: Resistant.
    • Substance: Premium gasoline.
    • Chemical resistance: Conditionally resistant.
    • Substance: Water.
    • Chemical resistance: Resistant.
    • Substance: UV.
    • Chemical resistance: Unstable.
    • Substance: Ozone.
    • Chemical resistance: Unstable.

eshop_Filter_00_General:

  • Weidmüller class short: Housing.
  • Weidmüller class target channel: Housing (industry plug-in connectors).

eshop_Filter_01_02_Connectors:

  • Product type: Enclosures.

Dimensions:

  • Height of base B1: 5.3 mm.
  • Height of housing B: 30 mm.
  • Hole pitch length A2: 83 mm.
  • Total length housing: 73 mm.
  • Width base C1: 47 mm.
  • Width housing C: 43 mm.

General data:

  • EMC housings: No.
  • Housing main material: diecast aluminium.
  • Material of locking element: Stainless steel, rust-proof.
  • Protection degree: IP65 (in plugged condition).
  • Surface finish: Powder coating.

Version:

  • BG: 4.
  • Clamp version: side-locking clamp.
  • Colour (RAL): RAL 7035.
  • Design: Standard.
  • Design of housing: Bulkhead housing.
  • Design of locking system: Side-locking clamp on lower side, Side-locking clamp not replaceable.
  • Sealing: NBR.
  • Size: 4.
  • Suitable for ModuPlug®: Yes.
  • Top part/bottom part/lid: lower part.
  • Type: Bulkhead (feed-through).
