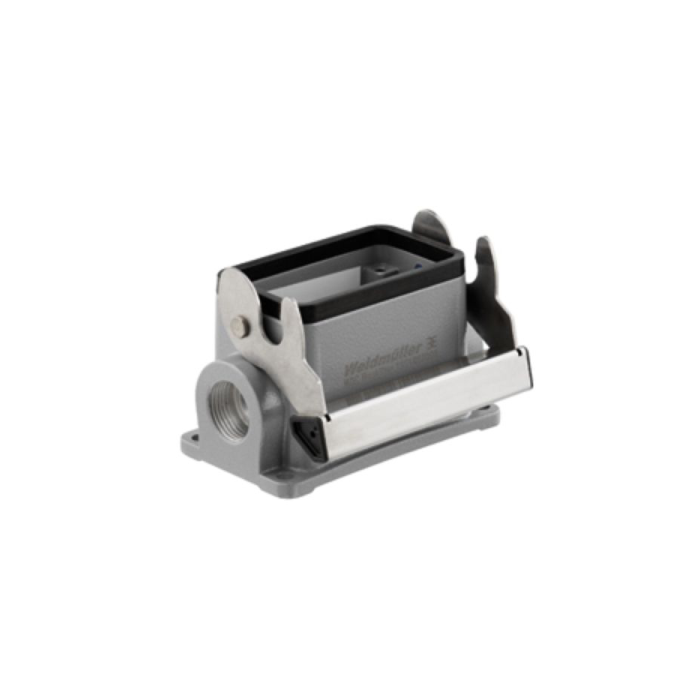

HDC 10B SLU 1M25G
HDC 10B SLU 1M25G:
- The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a lengthy lifespan with strong corrosion and impact resistance.
- The housing interlock system offers comprehensive safety.
- Our proprietary spring system secures the housing interlock, preventing accidental opening.
- The laser marking enables easy and quick identification.
- Laser-marked housings provide for easy product identification and positioning.
- Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Specifications dimensions and weights:
- Height: 57 mm.
- Height (inches): 2.244 inch.
- Width: 77.7 mm.
- Width (inches): 3.059 inch.
- Mounting dimension - height: 40 mm.
- Mounting dimension - width: 82 mm.
- Net weight: 270 g.
Temperatures:
- Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
- SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
- Chemical resistance:
- Substance: Acetone.
- Chemical resistance: Conditionally resistant.
- Substance: Drilling oil.
- Chemical resistance: Resistant.
- Substance: Diesel.
- Chemical resistance: Resistant.
- Substance: Ethyl alcohol.
- Chemical resistance: Resistant.
- Substance: Transmission oil.
- Chemical resistance: Resistant.
- Substance: Hydraulic oil.
- Chemical resistance: Resistant.
- Substance: Coolant.
- Chemical resistance: Resistant.
- Substance: Petroleum benzine.
- Chemical resistance: Resistant.
- Substance: Sweat.
- Chemical resistance: Resistant.
- Substance: Premium gasoline.
- Chemical resistance: Conditionally resistant.
- Substance: Water.
- Chemical resistance: Resistant.
- Substance: UV.
- Chemical resistance: Unstable.
- Substance: Ozone.
- Chemical resistance: Unstable.
eshop_Filter_00_General:
- Weidmüller class short: Housing.
- Weidmüller class target channel: Housing (industry plug-in connectors).
eshop_Filter_01_02_Connectors:
- Product type: Enclosures.
Dimensions:
- Cable entry: w. thread.
- Height of base B1: 5 mm.
- Height of housing B: 57 mm.
- Hole pitch length A2: 82 mm.
- Total length housing: 73 mm.
- Width base C1: 53.5 mm.
- Width housing C: 43 mm.
General data:
- EMC housings: No.
- Housing main material: diecast aluminium.
- Material of locking element: Stainless steel, rust-proof.
- Protection degree: IP65 (in plugged condition).
- Surface finish: Powder coating.
Version:
- BG: 4.
- Cable entry: w. thread.
- Clamp version: End-locking clamp.
- Colour (RAL): RAL 7035.
- Design: Standard.
- Design of housing: Base housing.
- Design of locking system: End-locking clamp, lower side.
- Internal thread: M 25.
- Number of cable entry on top: 0.
- Number of cable entry sideways: 1.
- Sealing: NBR.
- Size: 4.
- Size of cable entries: M 25.
- Suitable for ModuPlug®: No.
- Top part/bottom part/lid: lower part.
- Type: Base housing.
| Brand | Weidmuller |
|---|
