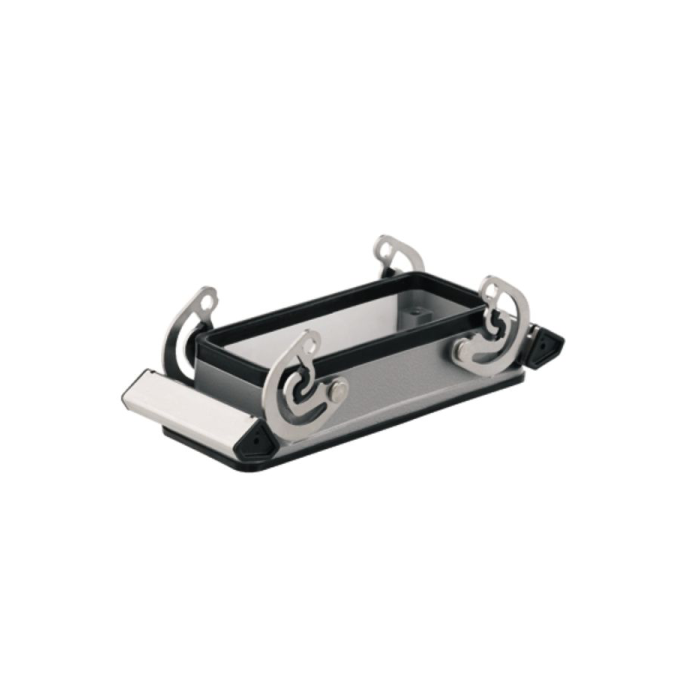

HDC 16B ABU
HDC 16B ABU:
- The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a lengthy lifespan with strong corrosion and impact resistance.
- The housing interlock system offers comprehensive safety.
- Our proprietary spring system secures the housing interlock, preventing accidental opening.
- The laser marking enables easy and quick identification.
- Laser-marked housings provide for easy product identification and positioning.
- Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Specifications dimensions and weights:
- Height: 29.3 mm.
- Height (inches): 1.154 inch.
- Width: 55 mm.
- Width (inches): 2.165 inch.
- Mounting dimension - height: 32 mm.
- Mounting dimension - width: 103 mm.
- Net weight: 159 g.
Temperatures:
- Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3.
- SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
- Chemical resistance:
- Substance: Acetone.
- Chemical resistance: Conditionally resistant.
- Substance: Drilling oil.
- Chemical resistance: Resistant.
- Substance: Diesel.
- Chemical resistance: Resistant.
- Substance: Ethyl alcohol.
- Chemical resistance: Resistant.
- Substance: Transmission oil.
- Chemical resistance: Resistant.
- Substance: Hydraulic oil.
- Chemical resistance: Resistant.
- Substance: Coolant.
- Chemical resistance: Resistant.
- Substance: Petroleum benzine.
- Chemical resistance: Resistant.
- Substance: Sweat.
- Chemical resistance: Resistant.
- Substance: Premium gasoline.
- Chemical resistance: Conditionally resistant.
- Substance: Water.
- Chemical resistance: Resistant.
- Substance: UV.
- Chemical resistance: Unstable.
- Substance: Ozone.
- Chemical resistance: Unstable.
eshop_Filter_00_General:
- Weidmüller class short: Housing.
- Weidmüller class target channel: Housing (industry plug-in connectors).
eshop_Filter_01_02_Connectors:
- Product type: Enclosures.
Dimensions:
- Height of base B1: 5.3 mm.
- Height of housing B: 29.5 mm.
- Hole pitch length A2: 103 mm.
- Total length housing: 93.3 mm.
- Width base C1: 47 mm.
- Width housing C: 43 mm.
General data:
- EMC housings: No.
- Housing main material: diecast aluminium.
- Material of locking element: Stainless steel, rust-proof.
- Protection degree: IP65 (in plugged condition).
- Surface finish: Powder coating.
Version:
- BG: 6.
- Clamp version: Side-locking clamp.
- Colour (RAL): RAL 7035.
- Design: Standard.
- Design of housing: Bulkhead housing.
- Design of locking system: Side-locking clamp on lower side.
- Side-locking clamp not replaceable.
- Sealing: NBR.
- Size: 6.
- Suitable for ModuPlug®: Yes.
- Top part/bottom part/lid: lower part.
- Type: Bulkhead (feed-through).
Important note:
- Product information: When mounting the housings, make sure that the flat gasket is correctly seated.
