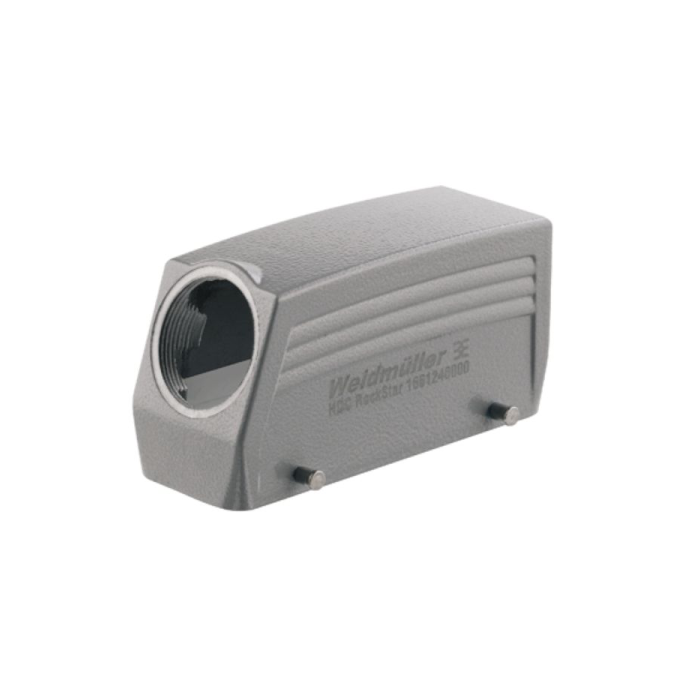

HDC 24B TSBU 1M32G
HDC 24B TSBU 1M32G:
- The HDC housings are fully protected by its die-cast metal and multi-layered surface sealing.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a lengthy lifespan with strong corrosion and impact resistance.
- The housing interlock system offers comprehensive safety.
- Our exclusive, patent-pending spring mechanism gives the housing interlock a firm hold and guards against unintentional opening.
- The laser marking enables easy and quick identification.
- Each housing is permanently branded with a laser marking, allowing each product to be instantly identified and positioned.
- Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
SPECIFICATIONS DIMENSIONS AND WEIGHTS:
- HEIGHT: 63 MM.
- HEIGHT (INCHES): 2.48 INCH.
- WIDTH: 59 MM.
- WIDTH (INCHES): 2.323 INCH.
- NET WEIGHT: 265 G.
TEMPERATURES:
- LIMIT TEMPERATURE: -40 °C - 125 °C.
ENVIRONMENTAL PRODUCT COMPLIANCE:
- REACH SVHC: LEAD 7439-92-1.
- SCIP: D447EDFA-0214-4F34-B5BA-82EAE491B46A.
- CHEMICAL RESISTANCE:
- SUBSTANCE: ACETONE.
- CHEMICAL RESISTANCE: CONDITIONALLY RESISTANT.
- SUBSTANCE: DRILLING OIL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: DIESEL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: ETHYL ALCOHOL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: TRANSMISSION OIL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: HYDRAULIC OIL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: COOLANT.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: PETROLEUM BENZINE.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: SWEAT.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: PREMIUM GASOLINE.
- CHEMICAL RESISTANCE: CONDITIONALLY RESISTANT.
- SUBSTANCE: WATER.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: UV.
- CHEMICAL RESISTANCE: UNSTABLE.
- SUBSTANCE: OZONE.
- CHEMICAL RESISTANCE: UNSTABLE.
ESHOP_FILTER_01_02_CONNECTORS:
- PRODUCT TYPE: ENCLOSURES.
DIMENSIONS:
- CABLE ENTRY: W. THREAD.
- HEIGHT OF HOUSING B: 63 MM.
- TOTAL LENGTH HOUSING: 120 MM.
- WIDTH HOUSING C: 43 MM.
GENERAL DATA:
- EMC HOUSINGS: NO.
- HOUSING MAIN MATERIAL: DIECAST ALUMINIUM.
- MATERIAL OF LOCKING ELEMENT: STAINLESS STEEL, RUST-PROOF.
- PROTECTION DEGREE: IP65 (IN PLUGGED CONDITION).
- SURFACE FINISH: POWDER COATING.
VERSION:
- BG: 8.
- Cable entry: w. thread.
- CLAMP VERSION: SIDE-LOCKING CLAMP.
- COLOUR (RAL): RAL 7035.
- DESIGN: Standard.
- Design of housing: Cable entry from side, Plug housing.
- DESIGN OF LOCKING SYSTEM: Side-locking clamp on lower side.
- INTERNAL THREAD: M 32.
- NUMBER OF CABLE ENTRY ON TOP: 0.
- NUMBER OF CABLE ENTRY SIDEWAYS: 1.
- SIZE: 8.
- Size of cable entries: M 32.
- SUITABLE FOR MODUPLUG®: NO.
- TOP PART/BOTTOM PART/LID: UPPER PART.
- TYPE: PLUG.
| Brand | Weidmuller |
|---|
