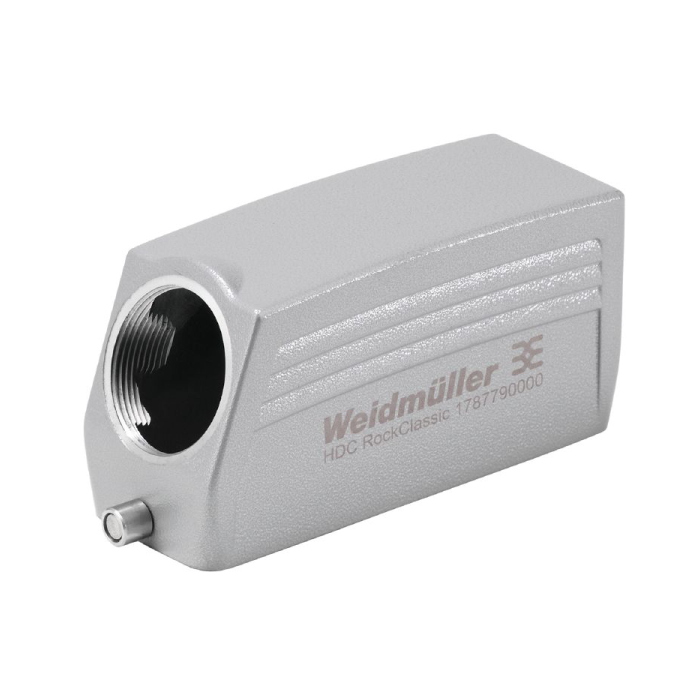

HDC 24B TSLU 1M32G
HDC 24B TSLU 1M32G:
- The HDC housings are fully protected by its die-cast metal and multi-layered surface sealing.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a lengthy lifespan with strong corrosion and impact resistance.
- The housing interlock system offers comprehensive safety.
- Our exclusive, patent-pending spring mechanism gives the housing interlock a firm hold and guards against unintentional opening.
- The laser marking enables easy and quick identification.
- Each housing is permanently branded with a laser marking, allowing each product to be instantly identified and positioned.
- Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Specifications dimensions and weights:
- Height: 61 mm.
- Height (inches): 2.402 inch.
- Width: 46 mm.
- Width (inches): 1.811 inch.
- Net weight: 272 g.
Temperatures:
- Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
- Chemical resistance:
- Substance: Acetone.
- Chemical resistance: Conditionally resistant.
- Substance: Drilling oil.
- Chemical resistance: Resistant.
- Substance: Diesel.
- Chemical resistance: Resistant.
- Substance: Ethyl alcohol.
- Chemical resistance: Resistant.
- Substance: Transmission oil.
- Chemical resistance: Resistant.
- Substance: Hydraulic oil.
- Chemical resistance: Resistant.
- Substance: Coolant.
- Chemical resistance: Resistant.
- Substance: Petroleum benzine.
- Chemical resistance: Resistant.
- Substance: Sweat.
- Chemical resistance: Resistant.
- Substance: Premium gasoline.
- Chemical resistance: Conditionally resistant.
- Substance: Water.
- Chemical resistance: Resistant.
- Substance: UV.
- Chemical resistance: Unstable.
- Substance: Ozone.
- Chemical resistance: Unstable.
eshop_Filter_01_02_Connectors:
- Product type: Enclosures.
Dimensions:
- Cable entry: w. thread.
- Height of housing B: 63 mm.
- Total length housing: 120 mm.
- Width housing C: 43 mm.
General data:
- EMC housings: No.
- Housing main material: diecast aluminium.
- Material of locking element: Stainless steel, rust-proof.
- Protection degree: IP65 (in plugged condition).
- Surface finish: Powder coating.
Version:
- BG: 8.
- Cable entry: w. thread.
- Clamp version: End-locking clamp.
- Colour (RAL): RAL 7035.
- Design: Standard.
- Design of housing: Cable entry from side.
- Plug housing.
- Design of locking system: End-locking clamp, lower side.
- Internal thread: M 32.
- Number of cable entry on top: 0.
- Number of cable entry sideways: 1.
- Size: 8.
- Size of cable entries: M 32.
- Suitable for ModuPlug®: No.
- Top part/bottom part/lid: upper part.
- Type: Plug.
