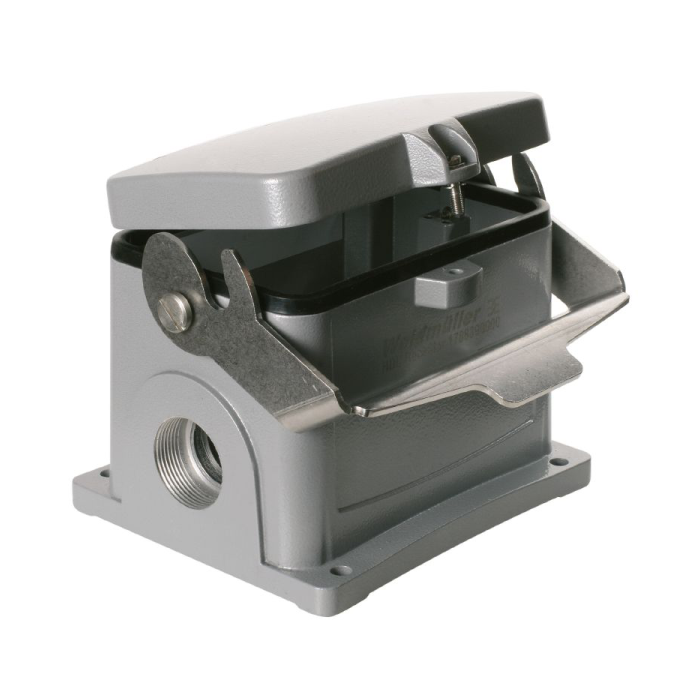

HDC 48B SDLU 1M32G
HDC 48B SDLU 1M32G:
- The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a long lifespan with strong resistance to corrosion and damage.
- The housing interlock system offers comprehensive safety.
- Our proprietary spring system secures the housing interlock and prevents it from being accidentally opened.
- The laser marking enables easy and quick identification.
- Laser-marked housings provide for easy product identification and positioning.
- Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Specifications dimensions and weights:
- Depth: 143 mm.
- Depth (inches): 5.63 inch.
- Height: 120 mm.
- Height (inches): 4.724 inch.
- Width: 166.2 mm.
- Width (inches): 6.543 inch.
- Mounting dimension - height: 106 mm.
- Mounting dimension - width: 111 mm.
- Net weight: 1,580 g.
Temperatures:
- Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
- Chemical resistance:
- Substance: Acetone.
- Chemical resistance: Conditionally resistant.
- Substance: Drilling oil.
- Chemical resistance: Resistant.
- Substance: Diesel.
- Chemical resistance: Resistant.
- Substance: Ethyl alcohol.
- Chemical resistance: Resistant.
- Substance: Transmission oil.
- Chemical resistance: Resistant.
- Substance: Hydraulic oil.
- Chemical resistance: Resistant.
- Substance: Coolant.
- Chemical resistance: Resistant.
- Substance: Petroleum benzine.
- Chemical resistance: Resistant.
- Substance: Sweat.
- Chemical resistance: Resistant.
- Substance: Premium gasoline.
- Chemical resistance: Conditionally resistant.
- Substance: Water.
- Chemical resistance: Resistant.
- Substance: UV.
- Chemical resistance: Unstable.
- Substance: Ozone.
- Chemical resistance: Unstable.
Dimensions:
- Cable entry: w. thread.
- Height of base B1: 10 mm.
- Height of housing B: 120 mm.
- Hole pitch length A2: 111 mm.
- Total length housing: 132 mm.
- Width base C1: 120 mm.
- Width housing C: 90 mm.
General data:
- EMC housings: No.
- Housing main material: diecast aluminium.
- Material of locking element: Stainless steel, rust-proof.
- Protection class note: Protection class with secured cover: IP 65.
- Protection degree: IP65 (in plugged condition).
- Surface finish: Powder coating.
- Tightening torque: 1.2 Nm.
Version:
- BG: 12.
- Cable entry: w. thread.
- Clamp version: End-locking clamp.
- Colour (RAL): RAL 7035.
- Cover: with cover.
- Design: Standard.
- Design of cover: with cover.
- Design of housing: Base housing.
- Design of locking system: End-locking clamp, lower side.
- Internal thread: M 32.
- Number of cable entry on top: 0.
- Number of cable entry sideways: 1.
- Sealing: NBR.
- Size: 12.
- Size of cable entries: M 32.
- Suitable for ModuPlug®: Yes.
- Tightening torque: 1.2 Nm.
- Top part/bottom part/lid: lower part.
- Type: Base housing.
| Brand | Weidmuller |
|---|
