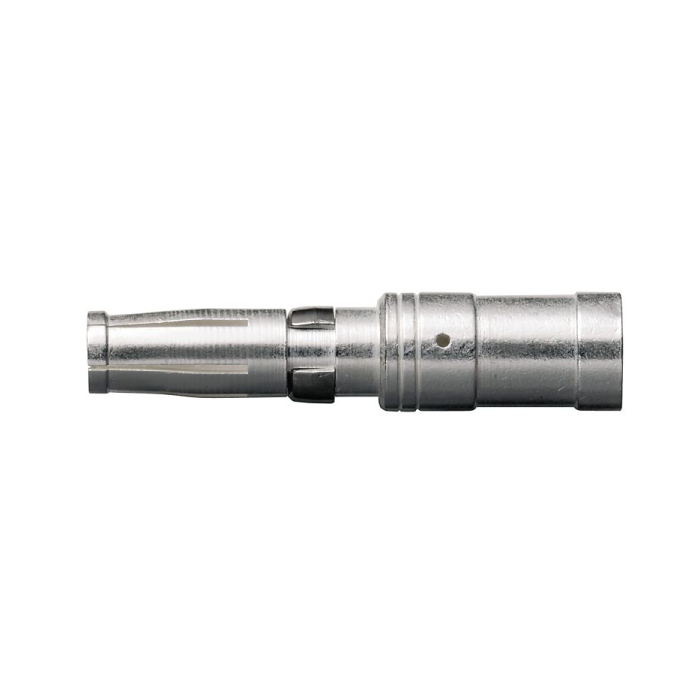

HDC-C-M3-BM10.0AG
HDC-C-M3-BM10.0AG:
- Crimps make an electrical and mechanical connection between wire and contact that is both secure and reliable.
- The ideal crimp connection is gas-tight and corrosion-resistant.
Dimensions and weights:
- Diameter: 6.1 mm.
- Net weight: 3.08 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40.
General data:
- Conductor cross-section, max.: 10 mm².
- Contact diameter, male Ø: 3.6 mm.
- Contact material: Copper alloy.
- Cross-section for connected wire: 10 mm².
- Material: Copper alloy.
- Production methods: turned.
- Stripping length, rated connection: 10 mm.
- Surface finish: silver.
- Type: Female.
- Type of connection: Crimp connection.
- Version insert: CM 3.
- Volume resistance: ≤1 mΩ.
| Brand | Weidmuller |
|---|
