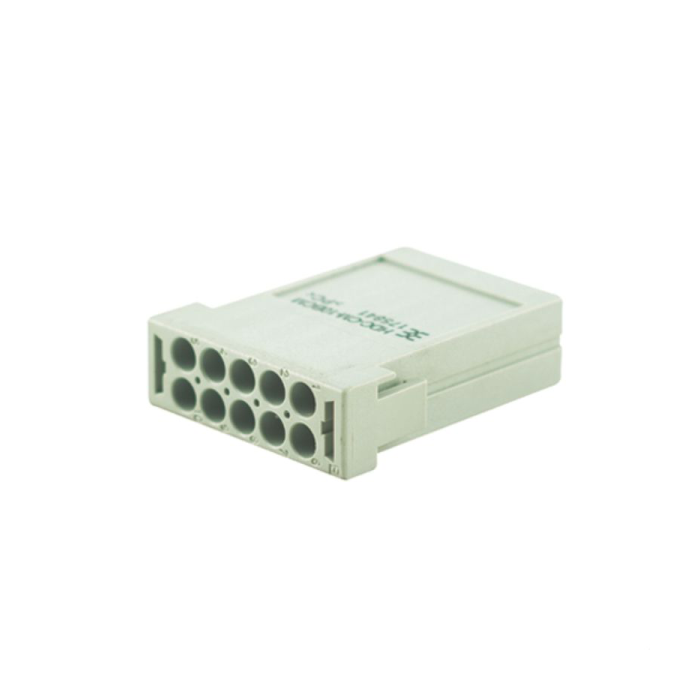

HDC CM 10 FC
HDC CM 10 FC:
- The CM10 module uses HD-series crimp connections.
- The crimp contact has a stainless steel spring.
- The top spring maintains a firm and persistent hold on the module's crimp contact.
- To disassemble the contacts, there are specialized contact-release instruments available.
- The CM10 module can be purchased with or without the inbuilt module release assistance.
- For modules with no integrated module-release aid, a removal tool is available.
Specifications dimensions and weights:
- Depth: 34 mm.
- Depth (inches): 1.339 inch.
- Height: 40.4 mm.
- Height (inches): 1.591 inch.
- Width: 11.4 mm.
- Width (inches): 0.449 inch.
- Net weight: 12.2 g.
Environmental Product Compliance:
- REACH SVHC: /.
Concept Pneumatic module:
- Colour: beige.
- UL 94 flammability rating: V-0.
Dimensions:
- Height of plug: 40.4 mm.
- Total length base: 34 mm.
- Width: 11.4 mm.
General data:
- Colour: beige.
- Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified)
- Insulation strength: 1011 Ω.
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Polycarbonate, glass fibre reinforced.
- Number of poles: 10.
- Pollution severity: 3.
- Rated current (DIN EN 61984): 10 A.
- Rated impulse voltage (DIN EN 61984): 4 kV.
- Rated voltage (DIN EN 61984): 250 V.
- Series: concept module.
- Surge voltage category: III.
- Type: Female.
- Type of connection: Crimp connection.
- UL 94 flammability rating: V-0.
- Volume resistance: ≤4 mΩ.
Connection data PE:
- Connection type PE: Screw connection via module frame.
Version:
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 0.14 mm².
- Material: Polycarbonate, glass fibre reinforced.
- Stripping length, rated connection: 8 mm.
- Type of connection: Crimp connection.
- Volume resistance: ≤4 mΩ.
- Wire connection cross section AWG, max.: AWG 14.
- Wire connection cross section AWG, min.: AWG 26.
| Brand | Weidmuller |
|---|
