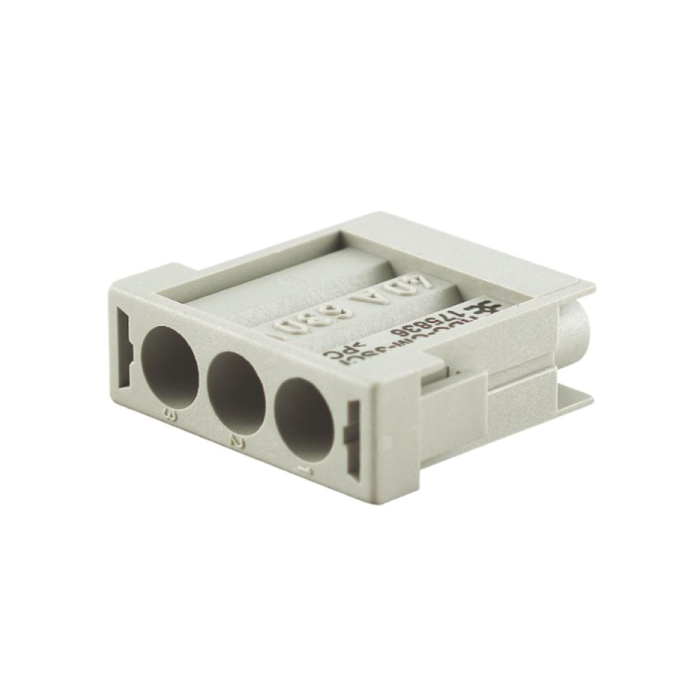

HDC CM 3 MC
HDC CM 3 MC:
- The module is connected by HE crimps connections.
- The crimp contact has a stainless-steel spring.
- This ensures a secure snap-in contact with the module.
- A customized contact removal tool is available to help you remove the contacts.
- The integrated module release aid is an option for the power modules.
- For modules without the included module release aid, a removal tool is offered.
Specifications dimensions and weights:
- Depth: 34 mm.
- Depth (inches): 1.339 inch.
- Height: 31.4 mm.
- Height (inches): 1.236 inch.
- Width: 11.4 mm.
- Width (inches): 0.449 inch.
- Net weight: 6.8 g.
Environmental Product Compliance:
- REACH SVHC: /.
Concept Pneumatic module:
- Colour: beige.
- UL 94 flammability rating: V-0.
Dimensions:
- Height of plug: 31.4 mm.
- Total length base: 34 mm.
- Width: 11.4 mm.
General data:
- Colour: beige.
- Insulation strength: 1012 Ω.
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Polycarbonate, glass fibre reinforced.
- Number of poles: 3.
- Pollution severity: 3.
- Rated current (DIN EN 61984): 40 A.
- Rated impulse voltage (DIN EN 61984): 8 kV.
- Rated voltage (DIN EN 61984): 690 V.
- Series: ConCept module.
- Surge voltage category: III.
- Type: Pin.
- Type of connection: Crimp connection.
- UL 94 flammability rating: V-0.
- Volume resistance: ≤1 mΩ.
Connection data PE:
- Connection type PE: Screw connection via module frame.
Version:
- Conductor cross-section, max.: 10 mm².
- Conductor cross-section, min.: 1.5 mm².
- Material: Polycarbonate, glass fibre reinforced.
- Stripping length, rated connection: 10 mm.
- Type of connection: Crimp connection.
- Volume resistance: ≤1 mΩ.
- Wire connection cross section AWG, max.: AWG 7.
- Wire connection cross section AWG, min.: AWG 16.
| Brand | Weidmuller |
|---|
