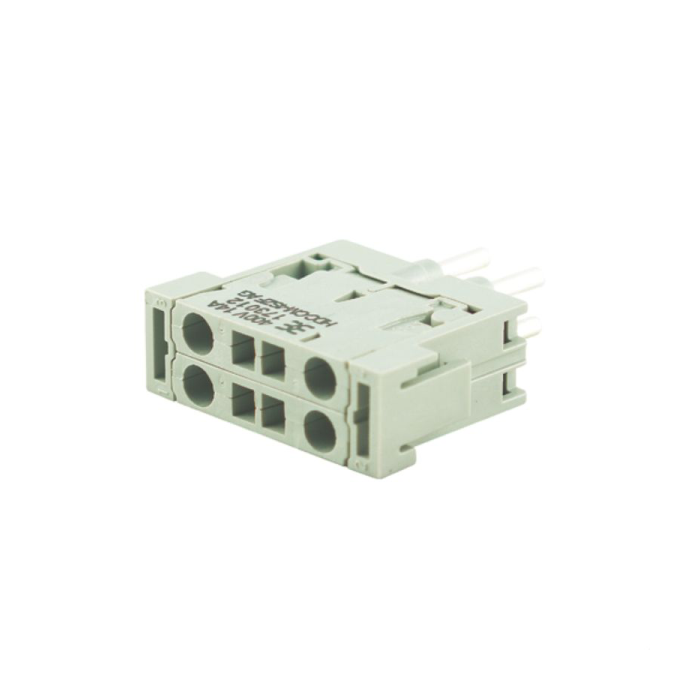

HDC-CM-4SZF AG:
- The CM4 module uses an established tension clamp connection.
- The contact point can be opened using a screwdriver.
- After inserting the wire, shut the contact chamber by removing the screwdriver.
- A secure connection can be established fast and without the use of any special tools.
- A removal tool is available to remove the modules.
Specification dimensions and weights:
- Height: 25.4 mm.
- Height (inches): 1 inch.
- Width: 11.4 mm.
- Width (inches): 0.449 inch.
- Length: 34 mm.
- Length (inches): 1.339 inch.
- Net weight: 15 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
- SCIP: b67daa31-7dca-434d-8290-da7fb52f83a2, ConCept Pneumatic module.
- Colour: beige.
- UL 94 flammability rating: V-0.
Dimensions:
- Height of plug: 25.4 mm.
- Total length base: 34 mm.
- Width: 11.4 mm.
General data:
- Colour: beige.
- Insulation strength: 1012 Ω.
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Polycarbonate, glass fibre reinforced.
- Number of poles: 4.
- Plugging cycles: ≥ 500.
- Pollution severity: 3.
- Rated current (DIN EN 61984): 14 A.
- Rated impulse voltage (DIN EN 61984): 6 kV.
- Rated voltage (DIN EN 61984): 400 V.
- Series: ConCept module.
- Surge voltage category: III.
- Type: Pin.
- Type of connection: Tension-clamp connection.
- UL 94 flammability rating: V-0.
- Volume resistance: 1.5 mΩ.
Connection data PE:
- Connection type PE: Screw connection via module frame.
Version:
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 0.5 mm².
- Material: Polycarbonate, glass fibre reinforced.
- Stripping length, rated connection: 10 mm.
- Type of connection: Tension-clamp connection.
- Volume resistance: 1.5 mΩ.
- Wire connection cross section AWG, max.: AWG 14.
- Wire connection cross section AWG, min.: AWG 20.
