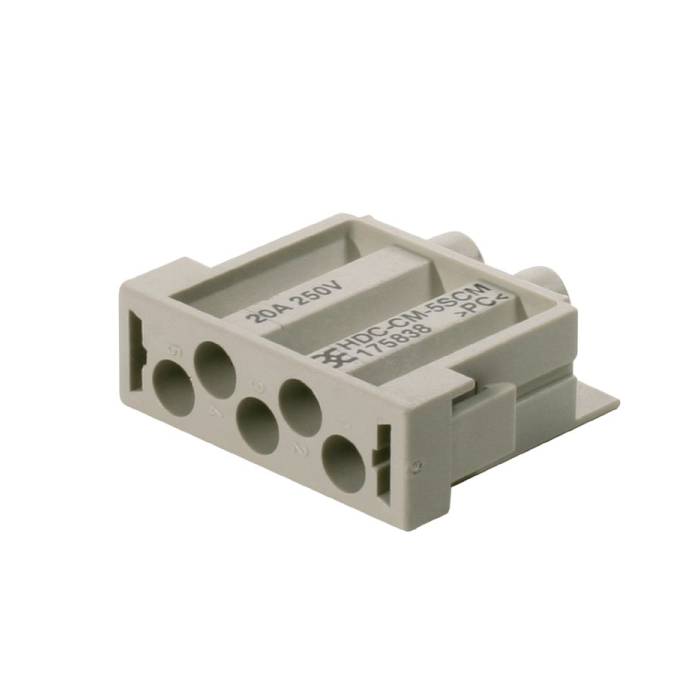

HDC CM 5 MC
HDC CM 5 MC:
- The CM5 modules are connected with crimp connections.
- The crimp contact has a stainless steel spring.
- enables a safe snap-in connection between the and the module.
- A contact removal tool is offered to help you remove the contacts.
- The integrated module release aid is an option when ordering the modules.
- For modules without the included module release aid, a removal tool is offered.
Specifications dimensions and weights:
- Depth: 34 mm.
- Depth (inches): 1.339 inch.
- Height: 30.5 mm.
- Height (inches): 1.201 inch.
- Width: 11.4 mm.
- Width (inches): 0.449 inch.
- Net weight: 6.2 g.
Environmental Product Compliance:
- REACH SVHC: /.
Concept Pneumatic module:
- Colour: beige.
- UL 94 flammability rating: V-0.
Dimensions:
- Height of plug: 30.5 mm.
- Total length base: 34 mm.
- Width: 11.4 mm.
General data:
- Colour: beige.
- Insulation strength: 1012 Ω.
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Polycarbonate, glass fibre reinforced.
- Number of poles: 5.
- Pollution severity: 3.
- Rated current (DIN EN 61984): 20 A.
- Rated impulse voltage (DIN EN 61984): 6 kV.
- Rated voltage (DIN EN 61984): 250 V.
- Series: concept module.
- Surge voltage category: III.
- Type: Pin.
- Type of connection: Crimp connection.
- UL 94 flammability rating: V-0.
- Volume resistance: ≤2 mΩ.
Connection data PE:
- Connection type PE: Screw connection via module frame.
Version:
- Conductor cross-section, max.: 4 mm².
- Conductor cross-section, min.: 0.5 mm².
- Material: Polycarbonate, glass fibre reinforced.
- Stripping length, rated connection: 7 mm.
- Type of connection: Crimp connection.
- Volume resistance: ≤2 mΩ.
- Wire connection cross section AWG, max.: AWG 12.
- Wire connection cross section AWG, min.: AWG 20.
| Brand | Weidmuller |
|---|
