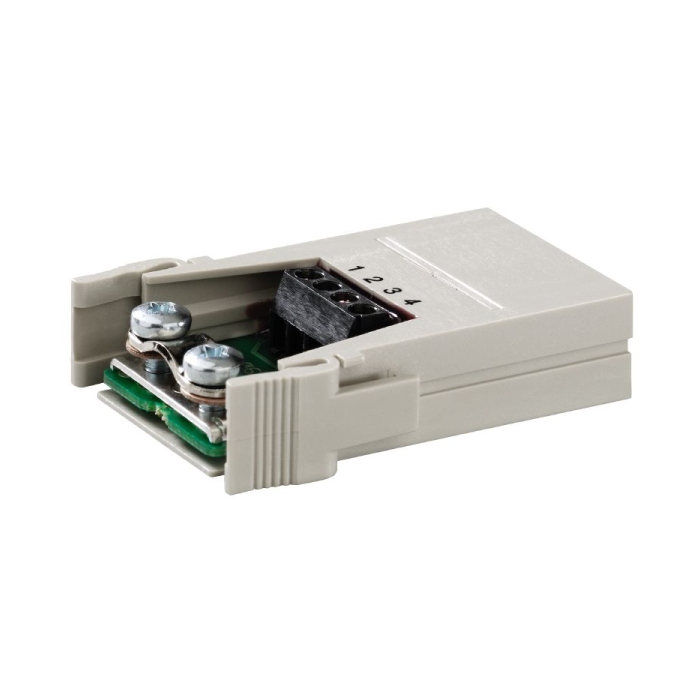

HDC CM BUS 4BS

ZAR 784.69
Out of stock
SKU
1814300000

HDC CM BUS 4BS:

  • When it comes to transmitting delicate signals in heavy-duty connectors, the Concept bus system is ideal.

Specifications dimensions and weights:

  • Height: 47.4 mm.
  • Height (inches): 1.866 inch.
  • Width: 11.4 mm.
  • Width (inches): 0.449 inch.
  • Length: 34 mm.
  • Length (inches): 1.339 inch.
  • Net weight: 16.69 g.

Temperatures:

  • Limit temperature: -20 °C... 85 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3.
  • SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.

Concept Pneumatic module:

  • Colour: beige.

Dimensions:

  • Height of socket: 47.4 mm.
  • Total length base: 34 mm.
  • Width: 11.4 mm.

General data:

  • Colour: beige.
  • Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
  • Low smoke acc. DIN EN 45545-2: Yes.
  • Material: Polycarbonate.
  • Number of poles: 4
  • Rated current (DIN EN 61984): 1 A.
  • Rated impulse voltage (DIN EN 61984): 0.8 kV.
  • Rated voltage (DIN EN 61984): 32 V.
  • Series: ConCept module.
  • Type: Female.
  • Type of connection: Screw connection.

Connection data PE:

  • Tightening torque, max. PE connection: 0.6 Nm.
  • Tightening torque, min. PE connection: 0.5 Nm.

Version:

  • Material: Polycarbonate.
  • Stripping length, rated connection: 5 mm.
  • Type of connection: Screw connection.
  • Wire connection cross section AWG, max.: AWG 16.
More Information
Brand Weidmuller
