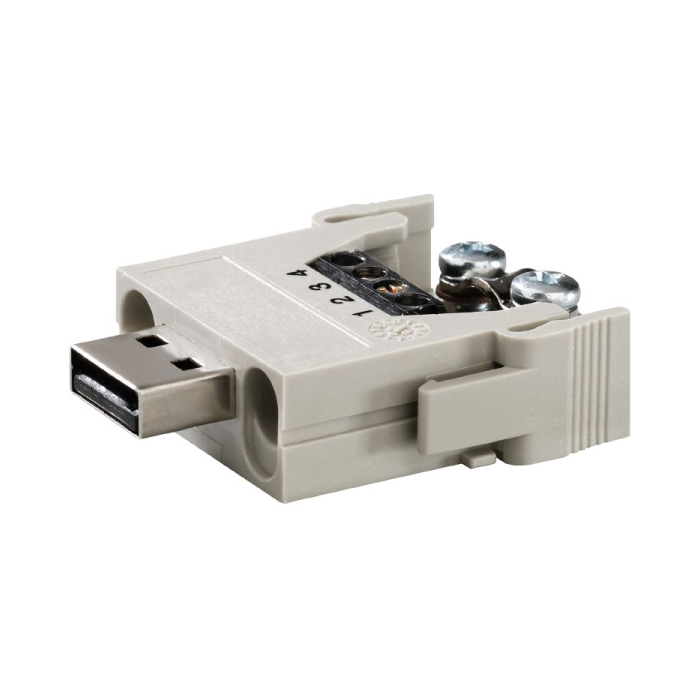

HDC CM BUS 4SS
HDC CM BUS 4SS:
- When it comes to transmitting delicate signals in heavy-duty connectors, the Concept bus system is ideal.
Dimensions and weights:
- Height: 43 mm.
- Height (inches): 1.693 inch.
- Width: 11.4 mm.
- Width (inches): 0.449 inch.
- Length: 34 mm.
- Length (inches): 1.339 inch.
- Net weight: 17.8 g.
Temperatures:
- Limit temperature: -20 °C... 85 °C.
- Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3.
- SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
- Concept Pneumatic module:
- Colour: beige.
Dimensions:
- Height of socket: 43 mm.
- Total length base: 34 mm.
- Width: 11.4 mm.
General data:
- Colour: beige.
- Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Polycarbonate.
- Number of poles: 4
- Rated current (DIN EN 61984): 1 A.
- Rated impulse voltage (DIN EN 61984): 0.8 kV.
- Rated voltage (DIN EN 61984): 32 V.
- Series: ConCept module.
- Type: Pin.
- Type of connection: Screw connection.
Connection data PE:
- Tightening torque, max. PE connection: 0.6 Nm.
- Tightening torque, min. PE connection: 0.5 Nm.
Version:
- Material: Polycarbonate.
- Stripping length, rated connection: 5 mm.
- Type of connection: Screw connection.
- Wire connection cross section AWG, max.: AWG 16.
| Brand | Weidmuller |
|---|
