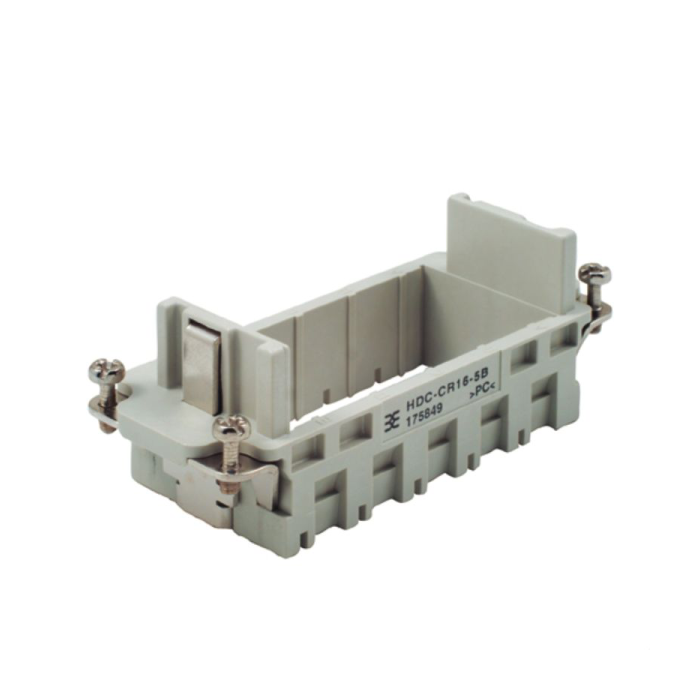

HDC-CR16-5B GR
HDC-CR16-5B GR:
- The durable CR6 module frames are available in polycarbonate or die-cast zinc.
- The frames are designed to accommodate two solitary or double modules.
- The CR6 frames are designed to fit inside size-3 housings.
Specification dimensions and weights:
- Depth: 84.5 mm.
- Depth (inches): 3.327 inch.
- Height: 35 mm.
- Height (inches): 1.378 inch.
- Width: 34 mm.
- Width (inches): 1.339 inch.
- Net weight: 29.94 g.
Temperatures:
- Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
- REACH SVHC: Potassium perfluoro butane sulfonate 29420-49-3.
- SCIP: 2f94735a-9fba-4903-842f-4fb9aa902310.
Concept Pneumatic module:
- Colour: beige.
- UL 94 flammability rating: V-0.
Dimensions:
- Height of plug: 35 mm.
- Total length base: 84.5 mm.
- Width: 34 mm.
General data:
- BG: 6
- Colour: beige.
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Polycarbonate.
- Number of poles: 1.
- Series: Concept frame.
- Size: 6.
- Type: Female.
- UL 94 flammability rating: V-0.
Connection data PE:
- Connection type PE: Screw connection.
- Tightening torque, max. PE connection: 1.5 Nm
- Tightening torque, min. PE connection: 1.2 Nm.
Version:
- BG: 6.
- Material: Polycarbonate.
- Size: 6.
- Wire connection cross section AWG, max.: AWG 14.
| Brand | Weidmuller |
|---|
