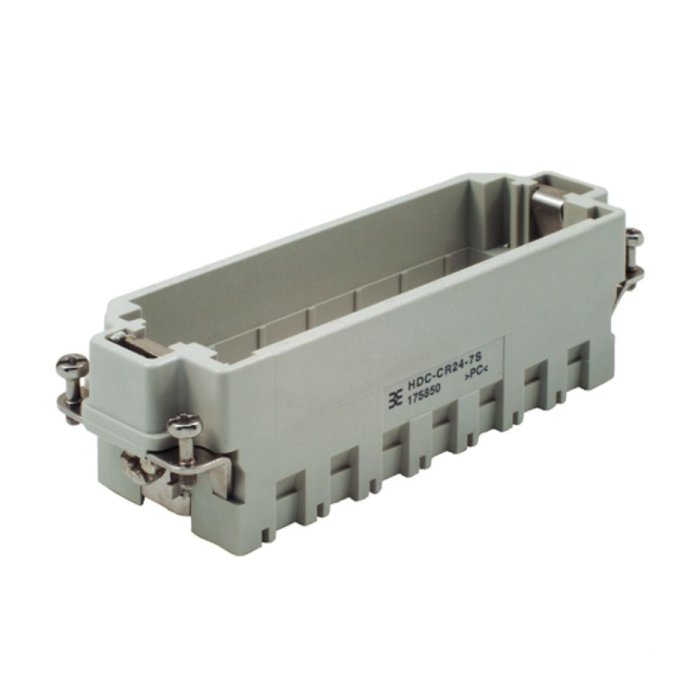

HDC-CR24-7S GR

ZAR 299.71
Out of stock
SKU
1758500000

HDC-CR24-7S GR:

  • The durable CR6 module frames are available in polycarbonate or die-cast zinc.
  • The frames are designed to accommodate two solitary or double modules.
  • The CR6 frames are designed to fit inside size-3 housings.

Specification dimensions and weights:

  • Depth: 111 mm.
  • Depth (inches): 4.37 inch.
  • Height: 35 mm.
  • Height (inches): 1.378 inch.
  • Width: 34 mm.
  • Width (inches): 1.339 inch.
  • Net weight: 49.34 g.

Temperatures:

  • Limit temperature: -40 °C... 125 °C.

Environmental Product Compliance:

  • REACH SVHC: Potassium perfluoro butane sulfonate 29420-49-3.
  • SCIP: 2f94735a-9fba-4903-842f-4fb9aa902310.

Concept Pneumatic module:

  • Colour: beige.
  • UL 94 flammability rating: V-0.

Dimensions:

  • Height of plug: 35 mm.
  • Total length base: 111 mm.
  • Width: 34 mm.

General data:

  • BG: 8.
  • Colour: beige.
  • Low smoke acc. DIN EN 45545-2: Yes.
  • Material: Polycarbonate.
  • Number of poles: 1.
  • Series: Concept frame.
  • Size: 8.
  • Type: Pin.
  • UL 94 flammability rating: V-0.

Connection data PE:

  • Connection type PE: Screw connection.
  • Tightening torque, max. PE connection: 1.5 Nm
  • Tightening torque, min. PE connection: 1.2 Nm.

Version:

  • BG: 8.
  • Material: Polycarbonate.
  • Size: 8.
  • Wire connection cross section AWG, max.: AWG 14.
