Specification dimensions and weights:

• Depth: 51 mm.
• Depth (inches): 2.008 inch.
• Height: 35 mm.
• Height (inches): 1.378 inch.
• Width: 34 mm.
• Width (inches): 1.339 inch.
• Net weight: 27.94 g.

Temperatures:

• Limit temperature: -40 °C... 125 °C.

Environmental Product Compliance:

• REACH SVHC: Potassium perfluoro butane sulfonate 29420-49-3.
• SCIP: 2f94735a-9fba-4903-842f-4fb9aa902310.

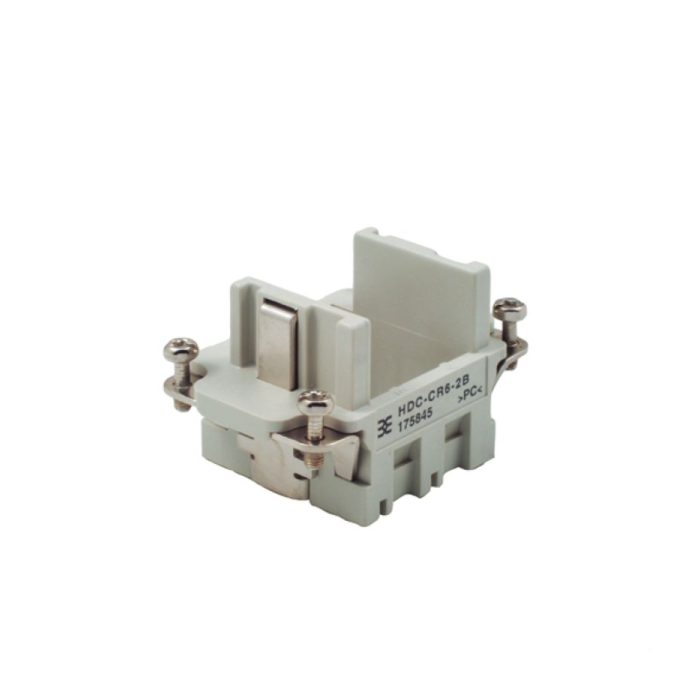

Concept Pneumatic module:

• Colour: beige.
• UL 94 flammability rating: V-0.

Dimensions:

• Height of plug: 35 mm.
• Total length base: 51 mm.
• Width: 34 mm.

General data:

• BG: 3.
• Colour: beige.
• Low smoke acc. DIN EN 45545-2: Yes.
• Material: Polycarbonate.
• Number of poles: 1.
• Series: Concept frame.
• Size: 3.
• Type: Female.
• UL 94 flammability rating: V-0.

Connection data PE:

• Connection type PE: Screw connection.
• Tightening torque, max. PE connection: 1.5 Nm
• Tightening torque, min. PE connection: 1.2 Nm.

Version:

• BG: 3.
• Material: Polycarbonate.
• Size: 3.
• Wire connection cross section AWG, max.: AWG 14.
