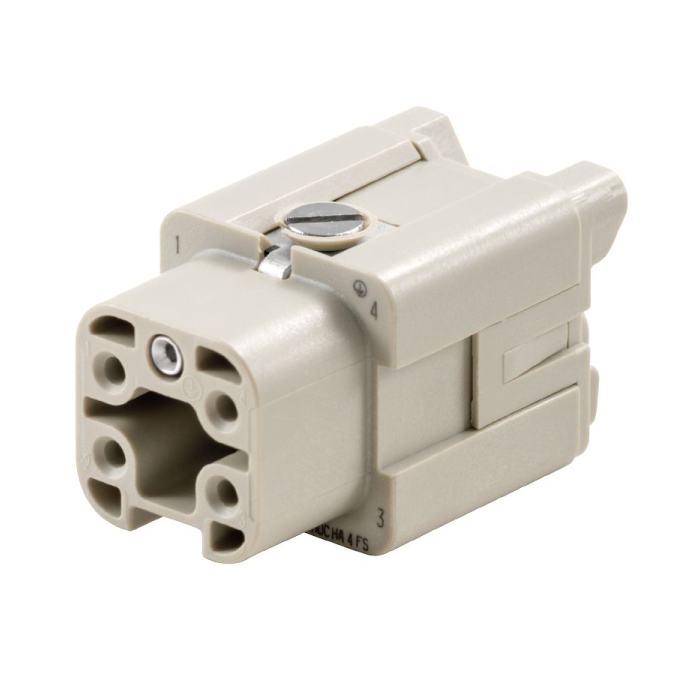

HDC HA 4 FS
HDC HA 4 FS:
- Anywhere there is a shortage of room, the compact and thin HA series can be employed.
- The wire connection level is intended for screw connections.
- Pole count: 3-4.
- Rated current: 16 A.
- Rated voltage: 400 V.
- Rated voltage according to UL/CSA: 600 V AC/DC.
- Top screw connection.
Specifications dimensions and weights:
- Depth: 21 mm.
- Depth (inches): 0.827 inch.
- Height: 36.5 mm.
- Height (inches): 1.437 inch.
- Width: 21 mm.
- Width (inches): 0.827 inch.
- Net weight: 23 g.
Temperatures:
- Limit temperature: -40 °C - 125 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3.
- SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
- Chemical resistance:
- Substance: Acetone.
- Chemical resistance: Resistant.
- Substance: Ammonia, watery.
- Chemical resistance: Conditionally resistant.
- Substance: Petrol.
- Chemical resistance: Resistant.
- Substance: Benzene.
- Chemical resistance: Resistant.
- Substance: Diesel oil.
- Chemical resistance: Conditionally resistant.
- Substance: Acetic acid, concentrated.
- Chemical resistance: Resistant.
- Substance: Potassium hydroxide.
- Chemical resistance: Conditionally resistant.
- Substance: Methanol.
- Chemical resistance: Conditionally resistant.
- Substance: Motor oil.
- Chemical resistance: Conditionally resistant.
- Substance: Lye, diluted.
- Chemical resistance: Resistant.
- Substance: Hydrochlorofluorocarbons.
- Chemical resistance: Conditionally resistant.
- Substance: Outdoor use.
- Chemical resistance: Conditionally resistant.
eshop_Filter_00_General:
- Weidmüller class short: Contact.
- Weidmüller class target channel: Contact insert (industry plug-in connectors).
eshop_Filter_01_02_Connectors:
- Category: Miscellaneous.
- Product type: Insert.
Dimensions:
- Width: 21 mm.
General data:
- BG: 1.
- Colour: beige.
- Conductor cross-section: 2.5 mm².
- Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
- Insulating material group: IIIa.
- Insulation strength: 1010 Ω.
- Low smoke acc. DIN EN 45545-2: Yes.
- Material: Copper alloy.
- Max. torque for main contact: 0.5 Nm.
- Number of poles: 4.
- Plugging cycles, silver: ≥ 500.
- Pollution severity: 3.
- Rated current (DIN EN 61984): 16 A.
- Rated impulse voltage (DIN EN 61984): 4 kV.
- Rated voltage (DIN EN 61984): 400 V.
- Rated voltage according to UL/CSA: 600 V AC/DC.
- Series: HA.
- Size: 1.
- Surface finish: Silver passivated.
- Type: Female.
- Type of connection: Screw connection.
- UL 94 flammability rating: V-0.
- Volume resistance: ≤2 mΩ.
Connection data PE:
- Blade size, slotted (PE connection): SD 0.6 x 3.5.
- Connection type PE: Screw connection.
- Fixing screw: M 3.
- Rated cross-section: 2.5 mm².
- Stripping length PE connection: 15 mm.
- Tightening torque, max. PE connection: 0.5 Nm.
- Wire cross section, AWG (PE), max.: AWG 14.
- Wire cross section, AWG (PE), min.: AWG 20.
Version:
- BG: 1.
- Blade size, slotted (screw connection): SD 0.6 x 3.5.
- Clamping screw: M 3.
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section, min.: 0.5 mm².
- Material: Copper alloy.
- Max. torque for main contact: 0.5 Nm.
- Size: 1.
- Stripping length, rated connection: 15 mm.
- Surface finish: Silver passivated.
- Type of connection: Screw connection.
- Volume resistance: ≤2 mΩ.
- Wire connection cross section AWG, max.: AWG 14.
- Wire connection cross section AWG, min.: AWG 20.
- Wire connection cross section, finely stranded, max.: 2.5 mm².
- Wire connection cross section, finely stranded, min.: 0.5 mm².
- Wire cross-section, solid, max.: 2.5 mm².
- Wire cross-section, solid, min.: 0.5 mm².
