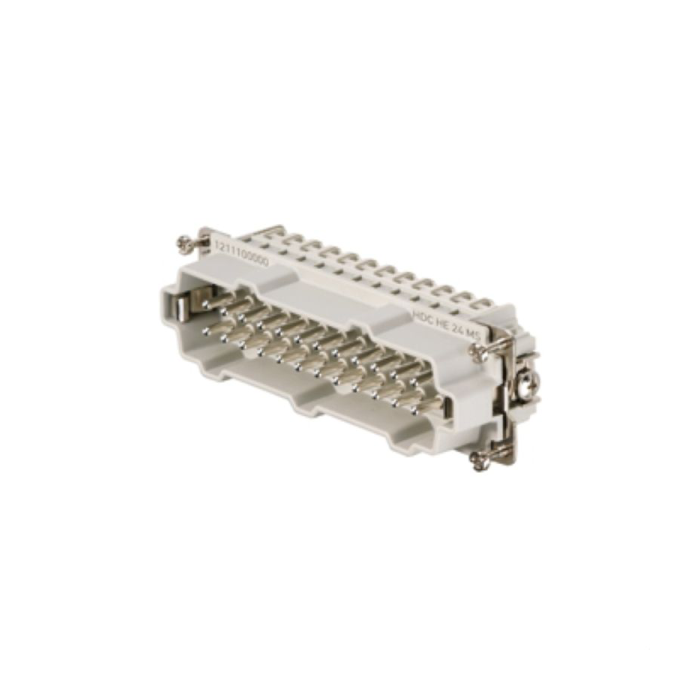

HDC HE 24 MS

ZAR 417.52
Out of stock
SKU
1211100000

HDC HE 24 MS:

  • The screw connection level is designed to function as a screw element.
  • All screw connectors (except size 1) include a wire protecting spring.
  • Number of poles: 24.
  • Rated current: 16 A.
  • Rated voltage is 500 volts.
  • Nominal voltage, according to UL/CSA: 600 V AC/DC.
  • Screw connections.

Specifications dimensions and weights:

  • Depth: 111 mm.
  • Depth (inches): 4.37 inch.
  • Height: 35.7 mm.
  • Height (inches): 1.406 inch.
  • Width: 34 mm.
  • Width (inches): 1.339 inch.
  • Net weight: 129 g.

Temperatures:

  • Limit temperature: -40 °C... 125 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
  • SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
  • Chemical resistance:
    • Substance: Acetone.
    • Chemical resistance: Resistant.
    • Substance: Ammonia, watery.
    • Chemical resistance: Conditionally resistant.
    • Substance: Petrol.
    • Chemical resistance: Resistant.
    • Substance: Benzene.
    • Chemical resistance: Resistant.
    • Substance: Diesel oil.
    • Chemical resistance: Conditionally resistant.
    • Substance: Acetic acid, concentrated.
    • Chemical resistance: Resistant.
    • Substance: Potassium hydroxide.
    • Chemical resistance: Conditionally resistant.
    • Substance: Methanol.
    • Chemical resistance: Conditionally resistant.
    • Substance: Motor oil.
    • Chemical resistance: Conditionally resistant.
    • Substance: Lye, diluted.
    • Chemical resistance: Resistant.
    • Substance: Hydrochlorofluorocarbons.
    • Chemical resistance: Conditionally resistant.
    • Substance: Outdoor use.
    • Chemical resistance: Conditionally resistant.

Dimensions:

  • Height of plug: 35.7 mm.
  • Total length base: 111 mm.
  • Width: 34 mm.

General data:

  • BG: 8.
  • Colour: beige.
  • Conductor cross-section: 2.5 mm².
  • Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
  • Insulating material group: IIIa.
  • Insulation strength: 1010 Ω.
  • Low smoke acc. DIN EN 45545-2: Yes.
  • Material: Copper alloy.
  • Max. torque for main contact: 0.55 Nm.
  • Min. torque for main contact: 0.5 Nm
  • Number of poles: 24.
  • Plugging cycles, silver: ≥ 500.
  • Pollution severity: 3.
  • Rated current (DIN EN 61984): 16 A.
  • Rated impulse voltage (DIN EN 61984): 6 kV.
  • Rated voltage (DIN EN 61984): 500 V.
  • Rated voltage according to UL/CSA: 600 V AC/DC.
  • Series: HE.
  • Size: 8
  • Surface finish: Silver passivated.
  • Type: Male.
  • Type of connection: Screw connection.
  • UL 94 flammability rating: V-0.
  • Volume resistance: ≤2 mΩ.

Connection data PE:

  • Blade size, slotted (PE connection): SD 0.8 x 4.0.
  • Connection type PE: Screw connection.
  • Fixing screw: M 4.
  • Rated cross-section: 4 mm².
  • Stripping length PE connection: 10 mm.
  • Tightening torque, max. PE connection: 1.5 Nm.
  • Tightening torque, min. PE connection: 1.2 Nm.
  • Wire cross section, AWG (PE), max.: AWG 12.
  • Wire cross section, AWG (PE), min.: AWG 20.

Version:

  • BG: 8.
  • Blade size: size PH1.
  • Blade size, slotted (screw connection): SD 0.6 x 3.5.
  • Clamping screw: M 3.
  • Conductor cross-section, max.: 2.5 mm².
  • Conductor cross-section, min.: 0.5 mm².
  • Material: Copper alloy.
  • Max. torque for main contact: 0.55 Nm.
  • Min. torque for main contact: 0.5 Nm.
  • Size: 8.
  • Stripping length, rated connection: 9 mm.
  • Surface finish: Silver passivated.
  • Type of connection: Screw connection.
  • Volume resistance: ≤2 mΩ.
  • Wire connection cross section AWG, max.: AWG 14.
  • Wire connection cross section AWG, min.: AWG 20.
  • Wire connection cross section, finely stranded, max.: 2.5 mm².
  • Wire connection cross section, finely stranded, min.: 0.5 mm².
  • Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm².
  • Wire cross-section, solid, max.: 2.5 mm².
  • Wire cross-section, solid, min.: 0.5 mm².
More Information
Brand Weidmuller
