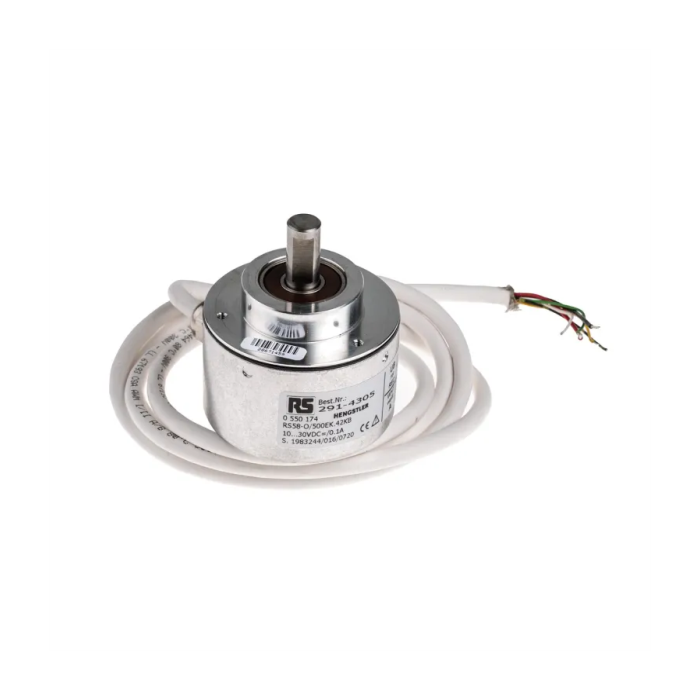

Hengstler RI58-O Series Incremental Incremental Encoder 10mm Shaft RS58-O/500EK.42KB
Specifications:
- Brand: Hengstler.
- Encoder Technology: Incremental.
- Series: RI58-O.
- Pulses Per Revolution: 500.
- Maximum Revolutions: 10000rpm.
- Output Signal Type: Push Pull.
- Shaft Type: Solid.
- Shaft Diameter: 10mm.
- Supply Voltage: 10 → 30 V dc.
- IP Rating: IP64, IP65.
- Overall, Height: 50mm.
- Minimum Operating Temperature: -10°C.
- Maximum Operating Temperature: +70°C.
- Switching Frequency: 200 kHz.
Description:
- 10mm RI58-0 Shaft.
- High specifications at a low cost.
- For accurate motion control in industrial automation, the Hengstler RI58-O Series Incremental Encoder is a sturdy and dependable option.
- It offers precise position and speed feedback, which is necessary for demanding applications, with a precision of 500 pulses per revolution.
- Even over prolonged cable runs, its push-pull (HTL) signal output guarantees robust and interference-resistant transmission, and its solid shaft design improves stability and longevity while in use.
- The encoder's 10 mm shaft diameter makes it adaptable and simple to incorporate into various mechanical systems.
- It provides reliable performance and a long service life, making it ideal for settings including CNC machinery, robotics, conveyor systems, and motor monitoring.
