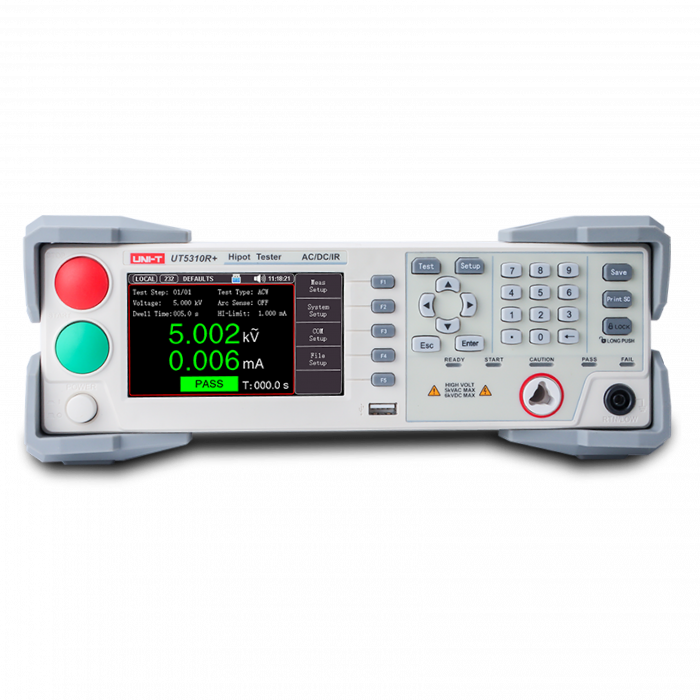

Hipot Testers, UT5310R+: 1CH, AC / DC / IR programmable
UT5300+ Series, Hipot Testers:
- 4.3-inch TFT LCD with WVGA resolution (800×480).
- Test modes include AC, DC, IR, and OS.
- Test for withstanding voltage: DC 6 kV/5 mA and AC 5 kV/10 mA.
- Accuracy of measurement: 3% ± 2 digits.
- ARC-detecting capability.
- role of comparative judgment.
- Allow up to 10,000 test items to be stored.
- USB host interface that supports storage and screenshots.
- Provide a PLC interface, a normal RS-232C interface, and support for SCPI.
- Provide upper-level computer software to enable remote control.
Specifications:
- UT5300+ Series, Hipot Testers.
- Channel 1.
- Voltage range 0.050kV-5.000kV.
- Voltage waveform Sine wave.
- Distortion degree < 3％.
- Operating Frequency 50/60Hz.
- Frequency accuracy ±1%.
- Output power 50VA (5.000kV 10mA).
- Voltage regulation ±(1.0%+50V) (Rated power).
- Power AC 110V/220V±10% 50-60Hz.
- Display mode 4.3-inch LCD screen.
- Product size(W×H×D) 280mm×88mm×428mm.
| SKU | UT5310R-Plus |
|---|---|
| Brand | UNI-T |
