HMI Module High-Feature
Description:

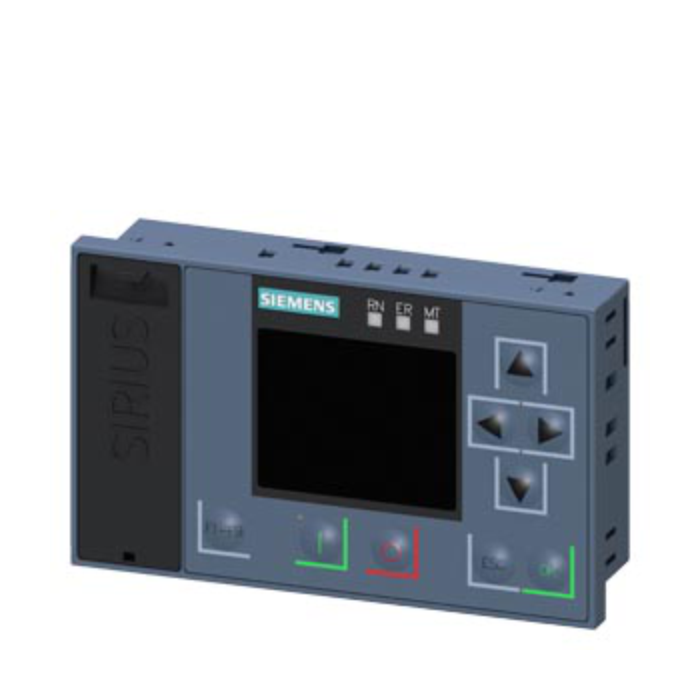

- The 3RW5980-0HF00 is a High-Feature HMI module that provides advanced monitoring, configuration, and diagnostics capabilities for Siemens soft starters.
- It enables intuitive interaction with the starter system, offering enhanced visibility into operational parameters and fault conditions—ideal for motor control centres, process automation panels, and energy-efficient installations.
Specifications:
- Product Category: HMI Module for SIRIUS soft starters.
- Design: High-Feature.
- Mounting: Snap-on; ±90° rotatable, ±22.5° tiltable.
- Dimensions (H×W×D): 68 × 111 × 32.15 mm.
- Protection Class (Front): IP20; finger safe.
- Operating Temp Range: –25 °C to +60 °C (derating above 40 °C).
- Storage Temp Range: –40 °C to +80 °C.
- Environmental Category: IEC 60721: 3K6, 3C3, 3S2, 3M6 (operation).
- Compatible Soft Starters: 3RW50, 3RW51, 3RW52, 3RW55.
- Weight: ~0.138 kg.
- Approvals & Compliance:
- CE, UKCA, UL, EAC, KC.
- Hazardous Location: ATEX, IECEx.
- Marine Certifications: ABS, BV, DNV, LRS, PRS.
- Environmental Confirmations: Yes.
- SVHC Substances: Contains lead-based compounds (RoHS-restricted).
| SKU | 3RW5980-0HF00 |
|---|---|
| Brand | Siemens |
