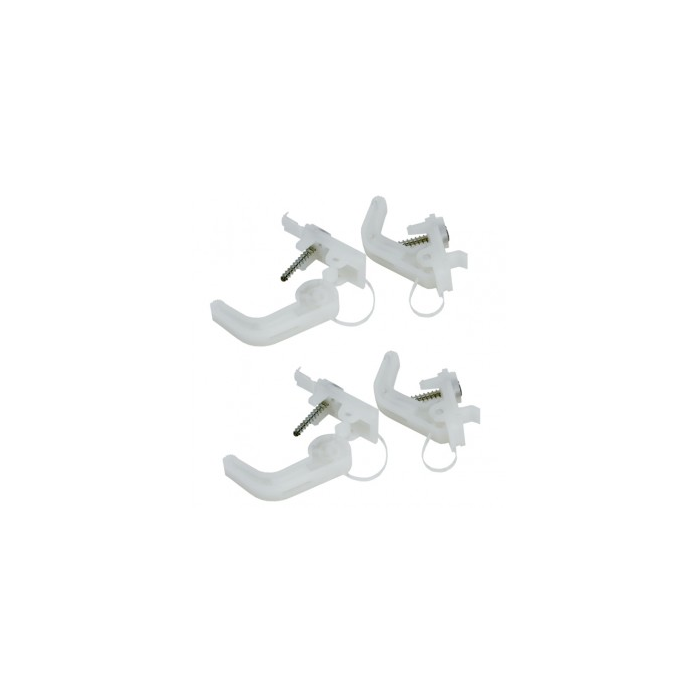

HOLLOW WALL MOUNT BRACKET
Golf series distribution boards:
- Specifically for the Golf series, the Hager VZ696N Hollow Wall attach Bracket is made to attach enclosures into hollow walls safely.
- This bracket is perfect for a variety of electrical distribution applications since it guarantees a sturdy and dependable installation.
- The VZ696N, which is made of premium polystyrene, offers solidity and durability, guaranteeing that your enclosures stay firmly in place.
Specifications:
- Dimensions:
- Insertion Depth: 50 mm.
- Depth of Installed Product: 60 mm.
- Internal Depth: 60 mm.
- Height of Installed Product: 67 mm.
- Width of Installed Product: 17.5 mm.
- Material: Polystyrene (PS).
- Colour: Pure white (RAL 9010).
- Mounting Method: Screwed.
- Surface Treatment: Untreated.
- Accessories Included: Fastening parts/set.
- Standards and Approvals:
- GWT Glow Wire Test: 850°C.
- European Directive WEEE: Not concerned.
- IK Protection Code Against Mechanical Impacts: IK07.
- Protection Class: Isol.class II.
- REACH Conform: Yes.
- RoHS Conform: Yes.
- Halogen Free: Yes.
| Brand | :hager |
|---|
