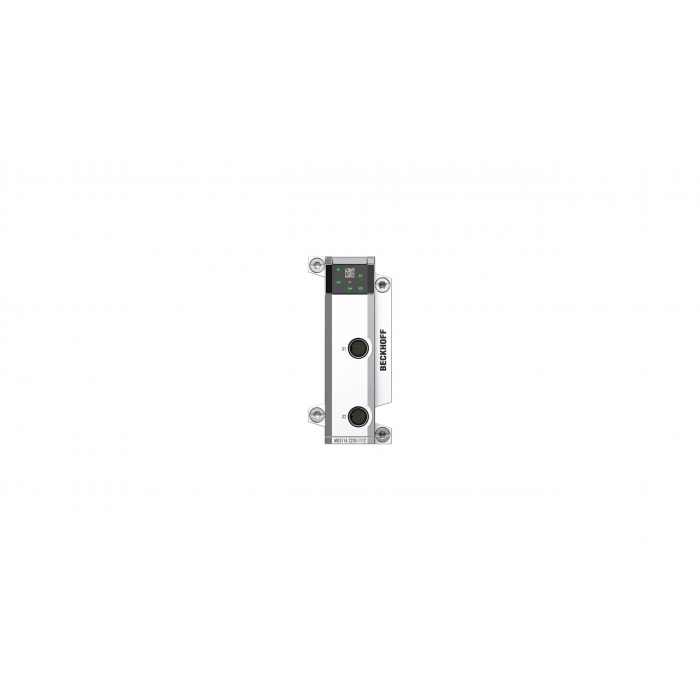

I/O analogue modules MO3114-2233-1112

Product category: I/O modules Category/version: analogue input, analogue output, combination I/O Type: multi-function, voltage, current Channels: 4 Value range: ±30 V, ±15 V, ±10 V, ±5 V, ±200 mV, ±20 mA, ±50 mA Resolution: 16 bit (incl. sign) Conversion time: 1 ms (1 ksps sampling frequency) Connection method: M12 Measurement error/ uncertainty: < ±0.3 % (relative to full scale value) Internal resistance: voltage input: > 130 Ω current input: 85 Ω typ. + diode voltage Load: voltage output: > 5 kΩ current output: < 500 Ω Supply voltage from backplane: 24 V DC Baseplate interface: data connector Diagnostics: yes, status and live data via app Distributed clocks: yes Hot swap: yes TwinCAT version: TwinCAT 3 Weight: approx. 250 g Approvals/markings: CE, (UL in preparation) Dimensions (W x H x D): 30 mm × 110 mm × 32 mm Number of rows: 1 Number of slots: 1 Material: zinc die-cast Cooling: convection Operating/storage temperature: 0…+50 °C/-25…+85 °C Protect. rating/installation pos.: IP65/67/variable
