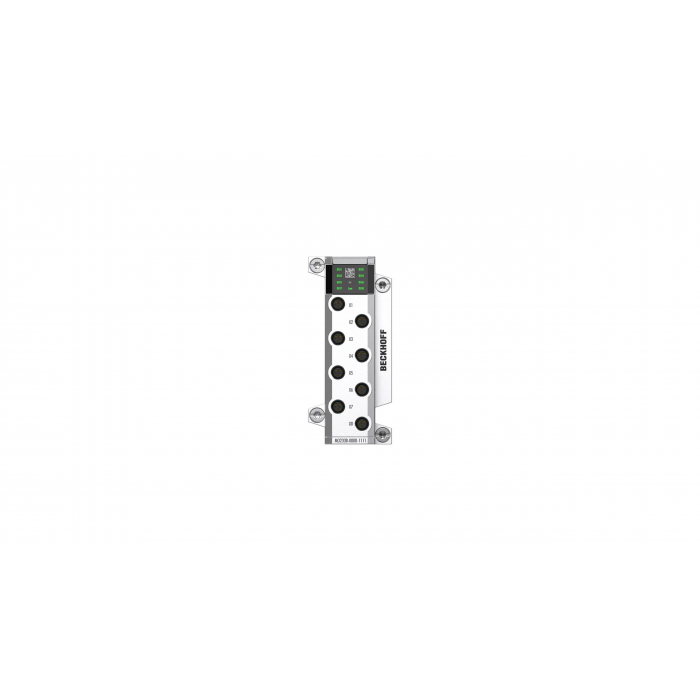

I/O modules MO2338-0000-1111

Product category: I/O modules Category/version: digital input, digital output, combination I/O Channels: 8 Output voltage: 24 V DC (-15 %/+20 %) Output current: 0.5 A per channel Input voltage: 24 V DC (-15 %/+20 %) “0” signal voltage: -3…+5 V “1” signal voltage: 11…30 V Input filter: adjustable 0…100 ms Input current: typ. 3 mA Specification: EN 61131-2, type 3, positive switching Connection method: M8 Load type: ohmic, inductive, lamp load Switching times: typ. TON: 50 µs, typ. TOFF: 100 µs Supply voltage from backplane: 24 V DC Baseplate interface: data connector Diagnostics: yes, status and live data via app Distributed clocks: yes Hot swap: yes TwinCAT version: TwinCAT 3 Weight: approx. 250 g Approvals/markings: CE, (UL in preparation) Dimensions (W x H x D): 30 mm × 110 mm × 32 mm Number of rows: 1 Number of slots: 1 Material: zinc die-cast Cooling: convection Operating/storage temperature: 0…+50 °C/-25…+85 °C Protect. rating/installation pos.: IP65/67/variable
