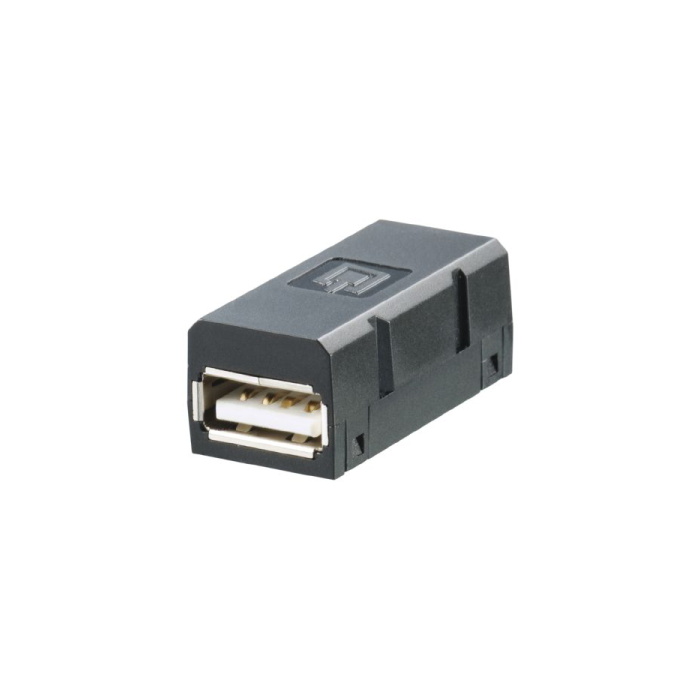

IE-BI-USB-A
Pricing available on request
Description:
- The Front Com Vario combines several features into a single frame.
- There is a large selection of data, signal, and power modules to choose from, and the system is simple to install.
- In addition to being exceptionally compact, Front Com Vario has a number of unique product characteristics that will make project planning and work activities more safe, rapid, and future proof.
- Additionally, the Front Com Vario system has a stylish housing design that satisfies all IP 65 protection class standards and gives the maximum impact resistance.
Specifications:
- Version: USB insert, Flange insert, type A.
- Quantity: 10.
- Operating temperature: -40 °C...70.
- Humidity: 0...93 % rel. humidity.
- Insert type: Insert data Steady Tec.
- Product type: USB insert.
- Protection degree: IP67 with housing.
- Connection 1: USB A.
- Connection 2: USB A.
- Description of article: Flange insert, type A.
- Wiring: Type A.
- Colour: black.
- Humidity: 0...93 % rel. humidity.
- Housing main material: PC UL 94 V0.
- Shielding: 360 deg; all-round enclosure.
- Protection degree: IP67 with housing.
- Plugging cycles: ≥ 1500.
Electrical properties:
- Contact resistance: ≤ 30 m Ω.
- Current-carrying capacity up to 90 °C: 3 A.
- Dielectric strength, contact / shield: ≥ 500 V DC.
- Insulation strength: ≥ 1000 MΩ.
| SKU | 1019570000 |
|---|---|
| Brand | Weidmuller |
