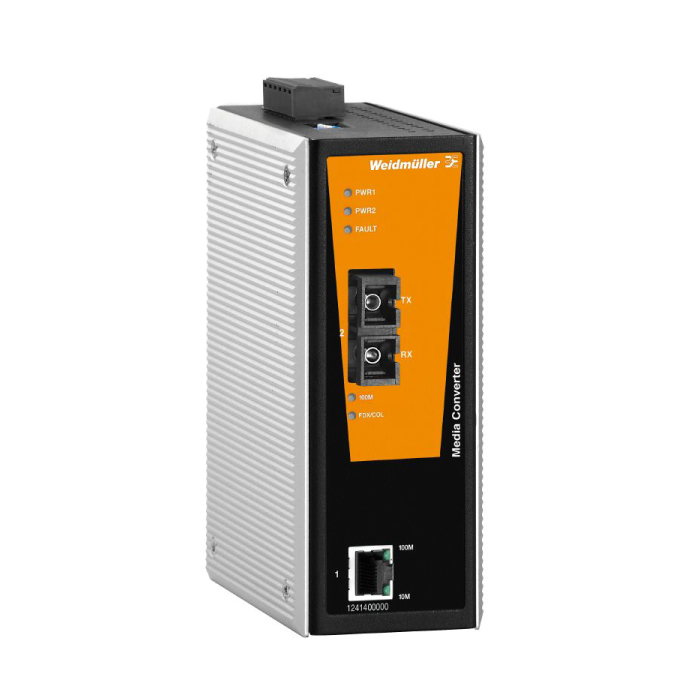

IE-MC-VL-1TX-1SC
Pricing available on request
Industrial Fast Ethernet media converter:
- 10/100BaseT(X) auto-MDI/MDI-X and auto-negotiation.
- LFP stands for Link Fault Pass-Through.
- Notification in case of port or power outage.
- Inputs from redundant power supplies.
- Working temperature range: -40 to 75 °C (T models).
- Intended for use in Class 1 Div. 2/A Tex Zone 2 regions at risk of explosion.
Specifications:
- Version: Media converter, Fast Ethernet.
- Quantity: 1.
- Depth: 105 mm.
- Height: 135 mm.
- Width: 53.6 mm.
- Storage temperature: -40 °C...85 °C.
- Operating temperature range: 0 °C...60 °C.
Environmental conditions:
- Humidity: 5 to 95 % (non-condensing).
- Operating temperature, max.: 60 °C.
- Operating temperature, min.: 0 °C.
- Storage temperature, max.: 85 °C.
- Storage temperature, min.: -40 °C.
Interfaces:
- Alarm contact: 1 relay output with a current capacity of 1 A at 24 V DC.
- Fiber-optic ports: 100BaseFX ports (SC connector), Multimode.
- Function DIP switch: 100BaseFX full-/half-duplex mode, Port surveillance.
- LED indicator: PWR1, PWR2, FAULT, 10/100M (TP-Port), 100M (fiber-optic port)., FDX/COL (Fiber port).
- Number of ports: 1x RJ45, 1 * SC Multi-mode.
- RJ45 ports: 10/100BaseT(X).
Power supply:
- Connection type: 1 removable 6-pin terminal block.
- Overload current protection: 1.1 A.
- Reverse polarity protection.
- Supply voltage: 24 V DC, 2 redundant inputs.
Current consumption:
- Voltage: 12 V.
- Current: 0.32 A.
- Voltage: 24 V.
- Current: 0.16 A.
Voltage supply range:
- Voltage type: DC.
- Voltage, min.: 12 V.
- Voltage, max.: 45 V.
Technical data:
- Housing main material: metal.
- Protection degree: IP30.
- Speed: Fast Ethernet.
- Type of mounting: DIN rail.
| SKU | 1241400000 |
|---|---|
| Brand | Weidmuller |
