IE-P63

ZAR 76.95
Out of stock
SKU
8813110000

Electrical properties:

  • Contact resistance: ≤ 20 MΩ.
  • Current-carrying capacity at 50 °C: 1A.
  • Dielectric strength, contact / contact: ≥ 1000 V AC/DC.
  • Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
  • Insulation strength: 500 MΩ.

Specifications:

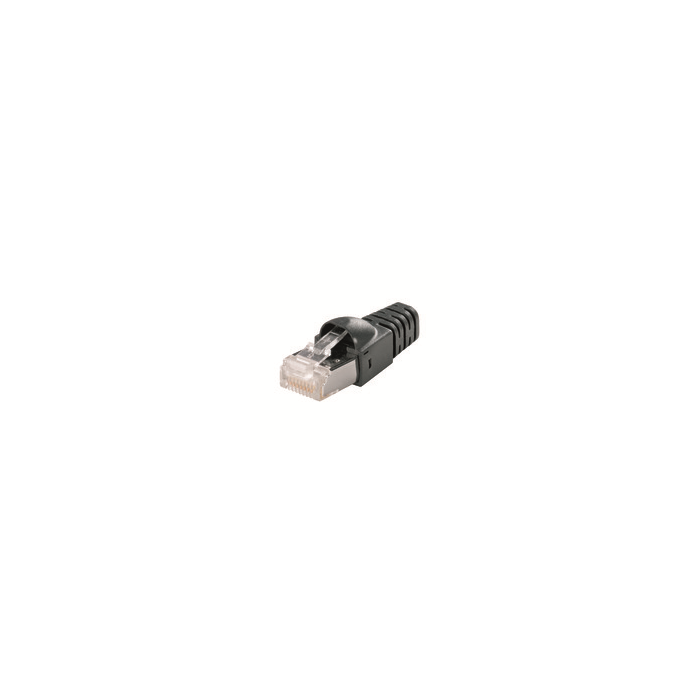

  • Version: RJ45 plug-in connector, with kink protection; 5.5 - 6.2 mm, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20.
  • Storage temperature: -40 °C...80 °C.
  • Operating temperature: -40 °C...70 °C.
  • Connection 1: RJ45.
  • Connection 2: Crimp.
  • Description of article: with kink protection; 5.5 - 6.2 mm.
  • Insulation cross-section, min.: 0.85 mm.
  • Insulation cross-section, max.: 1.05 mm.
  • Cable pull-out force, min.: 89 N.
  • Bending protection: molded.
  • Contact material: Phosphorus bronze.
  • Contact surface: Gold-plated.
  • Connection diameter, solid: 0.36...0.51 mm.
  • Conductor connection cross-section, solid (AWG): AWG 27...AWG 24.
  • Connection diameter, flexible: 0.46...0.61 mm.
  • Conductor connection cross-section, flexible (AWG): AWG 27...AWG 24.
  • Sheath diameter, min.: 5.5 mm.
  • Sheath diameter, max.: 6.2 mm.
  • Bending protection sleeve material: PVC, UL 94-V0.
  • Shielding material: 0.5 mm brass, 2 µm nickel.
  • Shielding: 360° all-round enclosure.
  • Protection degree: IP20.
  • Insertion force: 20 N.
  • Plugging cycles: 750.
  • Material insulator: Polycarbonate PC, UL 94 V-0.
More Information
Brand Weidmuller
