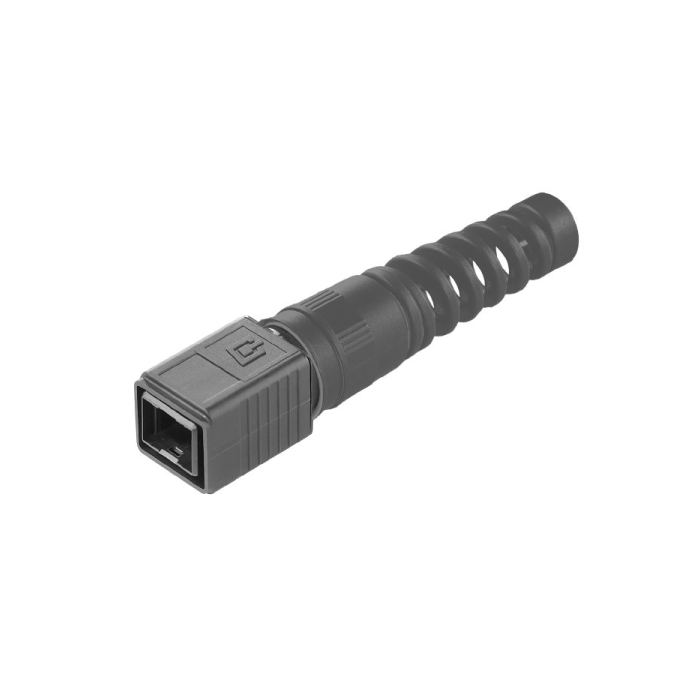

IE-PH-V04P-BP
IE-PH-V04P-BP:
- Push-pull plug-in connector according to IEC 61076-3-106 ver.4 (IEC24702), plastic, empty housing.
- Plug housing, bending protection, empty enclosure, Variant 4 to IEC 61076-3-106, IP67.
Data Plugs:
- Gender: male.
- Housing main material: PA UL 94 V0.
- Housing style: V4.
- Outlet direction: Straight.
- Protection degree: IP67.
Specifications dimensions and weights:
- Depth: 108.7 mm.
- Depth (inches): 4.28 inch.
- Height: 20.1 mm.
- Height (inches): 0.791 inch.
- Width: 21.2 mm.
- Width (inches): 0.835 inch.
- Net weight: 1.9 g.
Temperatures:
- Operating temperature: -40 °C...70 °C.
eshop_Filter_00_General:
- Weidmüller class short: Housing.
- Weidmüller class target channel: housing (industrial ethernet).
eshop_Filter_01_02_Connectors:
- Product type: Empty enclosure.
- Type of connection: Miscellaneous.
General data:
- Colour: Miscellaneous.
- Housing main material: PA UL 94 V0.
- Plugging cycles: 750.
- Protection degree: IP67.
General standards:
- Certificate no.(cULus): E316369.
- Connector standard: IEC 61076-3-106 Var.4.
| Brand | Weidmuller |
|---|
