Specifications:

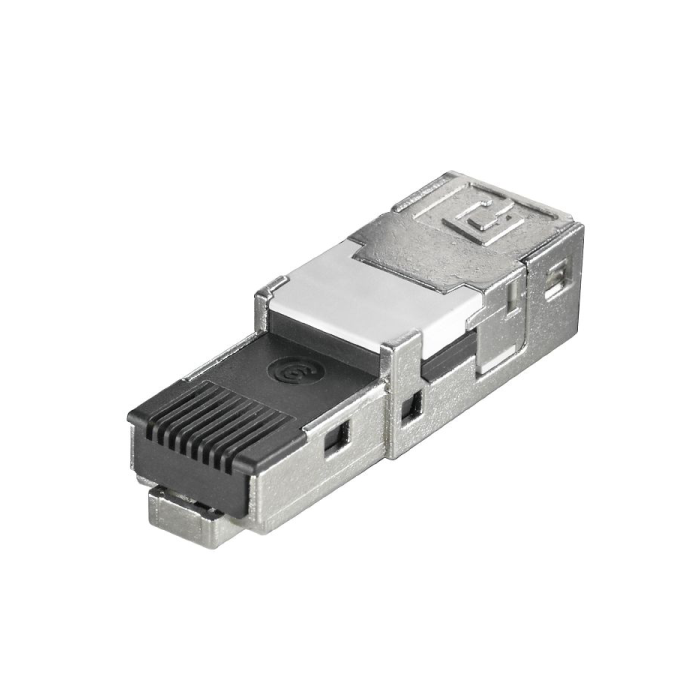

• Version: Plug insert RJ45 IDC.
• Quantity: 10.
• Operating temperature: -40 °C...70.
• Fire load: 49 kJ.
• Connection 1: RJ45.
• Connection 2: IDC.
• Description of article: Plug insert RJ45, no tools required.
• Wiring: TIA-568A, EIA/TIA T568 B, PROFINET.
• Colour: Miscellaneous.
• Housing main material: Zinc diecast.
• Insulation cross-section, min.: 0.85 mm.
• Insulation cross-section, max.: 1.6 mm.
• Contact surface: Gold over Nickel, Au ≥ 0.8 µm.
• Connection diameter, solid: 0.4...0.64 mm.
• Conductor connection cross-section, solid (AWG): AWG 24...AWG 22.
• Connection diameter, flexible: 0.48...0.76 mm.
• Conductor connection cross-section, flexible (AWG): AWG 26...AWG 22.
• Conductor connection cross-section, extremely flexible: Approval of the cable by Weidmüller necessary.
• Conductor connection cross-section, extremely flexible (AWG): Approval of the cable by Weidmüller necessary.
• Note, very finely stranded line connection: Approval of the cable by Weidmüller necessary.
• Shielding: 360 deg; all-round enclosure.
• Protection degree: IP67 with housing.
• Plugging cycles: 750.
• Ability to reconnect: ≥ 10 cycles (for the same or larger cross-section).

Electrical properties:

• Contact resistance: ≤ 20 m Ω.
• Current-carrying capacity at 50 °C: 1 A.
• Dielectric strength, contact / shield: ≥ 1000 V DC.
• Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
• Insulation strength: 500 M Ω.
• PoE / PoE+: conforming to IEEE 802.3af.
