Specifications:

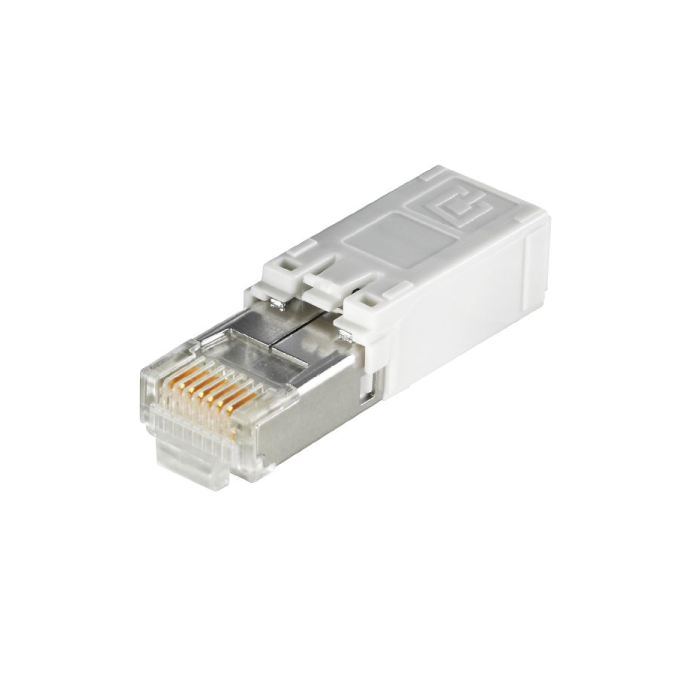

• Version: Plug insert RJ45 IDC, Plug insert RJ45, crimp.
• Quantity: 10.
• Operating temperature: -40 °C...70.
• Humidity: 0...93 % rel. humidity.
• Connection 1: RJ45.
• Connection 2: IDC.
• Description of article: Plug insert RJ45, crimp.
• Colour: Miscellaneous.
• Shock resistance acc. to IEC 60512-6-3: 250 ms-2.
• Vibration resistance acc. to IEC 60512-6-4: 50 ms-2 sinusoidal (9…500 Hz).
• Humidity: 0...93 % rel. humidity.
• Housing main material: Brass, PC UL 94 V0.
• Insulation cross-section, min.: 0.85 mm.
• Insulation cross-section, max.: 1.05 mm.
• Contact material: Phosphorus bronze.
• Contact surface: Gold over Nickel, Au ≥ 0.8 µm, Ni 2.54 µm.
• Connection diameter, solid: 0.4...0.51 mm.
• Conductor connection cross-section, solid (AWG): AWG 26/1...AWG 24/1.
• Connection diameter, flexible: 0.46...0.61 mm.
• Conductor connection cross-section, flexible (AWG): AWG 27/7...AWG 24/7.
• Sheath diameter, min.: 5 mm.
• Sheath diameter, max.: 7.3 mm.
• Shielding: 360 deg; all-round enclosure.
• Protection degree: IP67 with housing.
• Plugging cycles: 750.

Electrical properties:

• Contact resistance: ≤ 20 m Ω.
• Current-carrying capacity at 50 °C: 1 A.
• Dielectric strength, contact / shield: ≥ 1000 V DC.
• Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
• Insulation strength: 500 M Ω.
• PoE / PoE+: conforming to IEEE 802.3af.
