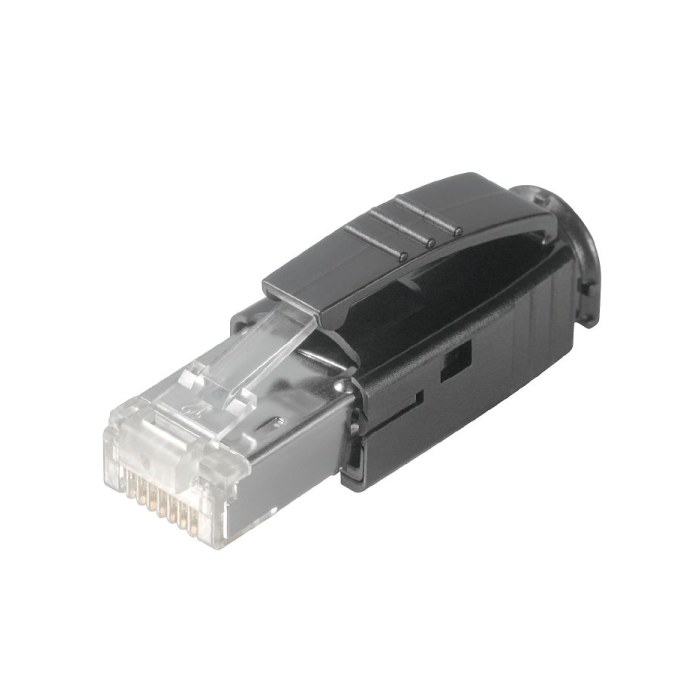

IE-PS-RJ45-FH-BK
Pricing available on request
Description:
- RJ45 crimp plug-in connector according to IEC 60603-7-51 for wire outer diameters up to 1.05 mm.
Electrical properties:
- Contact resistance: ≤ 20 m Ω.
- Current-carrying capacity at 50 °C: 1 A.
- Dielectric strength, contact / contact: ≥ 1000 V AC/DC.
- Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
- Insulation strength: 500 MΩ.
- PoE / PoE+: conforming to IEEE 802.3af.
Specifications:
- Version: RJ45 IDC plug, Cat.6A / Class EA (ISO/IEC 11801 2010), 8-core, 4-core, EIA/TIA T568 A, EIA/TIA T568 B, PROFINET.
- Quantity: 10.
- Operating temperature: -40 °C...70 °C.
- Fire load: 77 kJ.
- No Halogen.
- Material locking lever: PA UL94-V0.
- Material strain relief: PA UL94-V0.
- Connection 1: RJ45.
- Connection 2: IDC.
- Configuration: Eight-wire field-assembled RJ45 plug with colour coding on the plug, TIA A/B/ProfiNet, multiport-ready.
- Wiring: 8-core, 4-core, EIA/TIA T568 A, EIA/TIA T568 B, PROFINET.
- Housing main material: Zinc diecast.
- Insulation cross-section, min.: 0.85 mm.
- Insulation cross-section, max.: 1.6 mm.
- Category: Cat.6A / Class EA (ISO/IEC 11801 2010).
- Contact material: Phosphorus bronze.
- Contact surface: Gold over nickel.
- Connection diameter, solid: 0.41...0.64 mm.
- Conductor connection cross-section, solid (AWG): AWG 24/1...AWG 22/1.
- Conductor connection cross-section, solid: 0.13...0.32 mm².
- Connection diameter, flexible: 0.48...0.76 mm.
- Conductor connection cross-section, flexible (AWG): AWG 26/7...AWG 22/7.
- Wire connection cross section, finely stranded, min.: 0.141 mm².
- Conductor connection cross-section, flexible: 0.14...0.35 mm².
- Conductor connection cross-section, extremely flexible: Approval of the cable by Weidmüller necessary.
- Conductor connection cross-section, extremely flexible (AWG): Approval of the cable by Weidmüller necessary.
- Note, very finely stranded line connection: Approval of the cable by Weidmüller necessary.
- MICE classification M: M1.
- MICE classification I: I1.
- MICE classification C: C1.
- MICE classification E: E3.
- Sheath diameter, min.: 5.5 mm.
- Sheath diameter, max.: 8.5 mm.
- Shielding: 360 deg; all-round enclosure.
- Protection degree: IP20.
- Insertion force: ≤ 30 N.
- Plugging cycles: 750.
- Material insulator: PA UL94-V0.
- Ability to reconnect: ≥ 10 cycles (for the same or larger cross-section).
| SKU | 1963600000 |
|---|---|
| Brand | Weidmuller |
