Specifications:

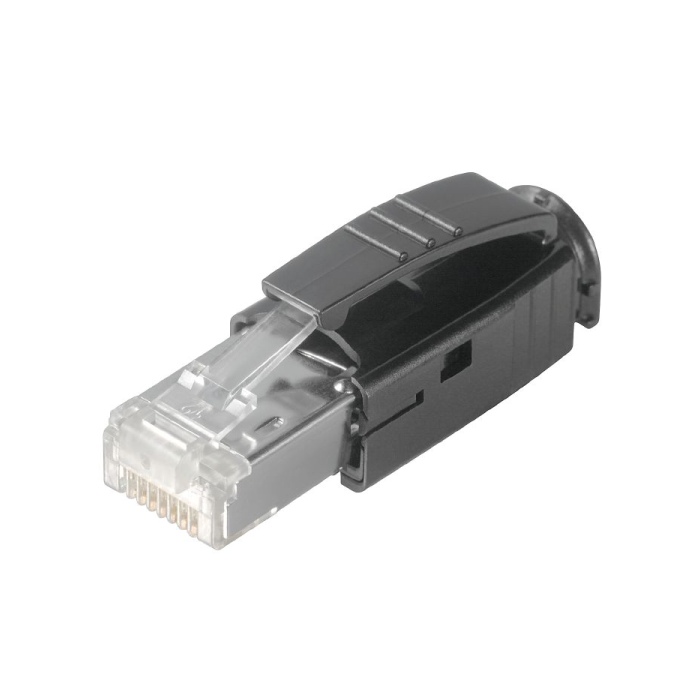

• Version: RJ45 crimp plug, Plug with bending protection sleeve in black.
• Quantity: 10.
• Operating temperature: -40 °C...70 °C.
• Connection 1: RJ45.
• Connection 2: Crimp.
• Description of article: Plug without bending protection sleeve.
• Configuration: Connects piercing contacts and shielded connections in one step, retrofit for kink-prevention sleeves, multi-port compatible.
• Colour: Miscellaneous.
• Insulation cross-section, min.: 0.85 mm.
• Insulation cross-section, max.: 1.05 mm.
• Cable pull-out force, min.: 89 N.
• Category: Cat.6A / Class EA (ISO/IEC 11801 2010).
• Contact material: Phosphorus bronze.
• Contact surface: Gold-plated.
• Connection diameter, solid: 0.36...0.51 mm.
• Conductor connection cross-section, solid (AWG): AWG 27...AWG 24.
• Connection diameter, flexible: 0.46...0.61 mm.
• Conductor connection cross-section, flexible (AWG): AWG 27...AWG 24.
• MICE classification M: M1.
• MICE classification I: I1.
• MICE classification C: C1.
• MICE classification E: E3.
• Sheath diameter, min.: 5 mm.
• Sheath diameter, max.: 7.3 mm.
• Bending protection sleeve material: Polycarbonate PC, UL 94 V-0.
• Shielding material: 0.5 mm brass, 2 µm nickel.
• Shielding: 360 deg; all-round enclosure.
• Protection degree: IP20.
• Plugging cycles: 750.
• Material insulator: Polycarbonate PC, UL 94 V-0.
