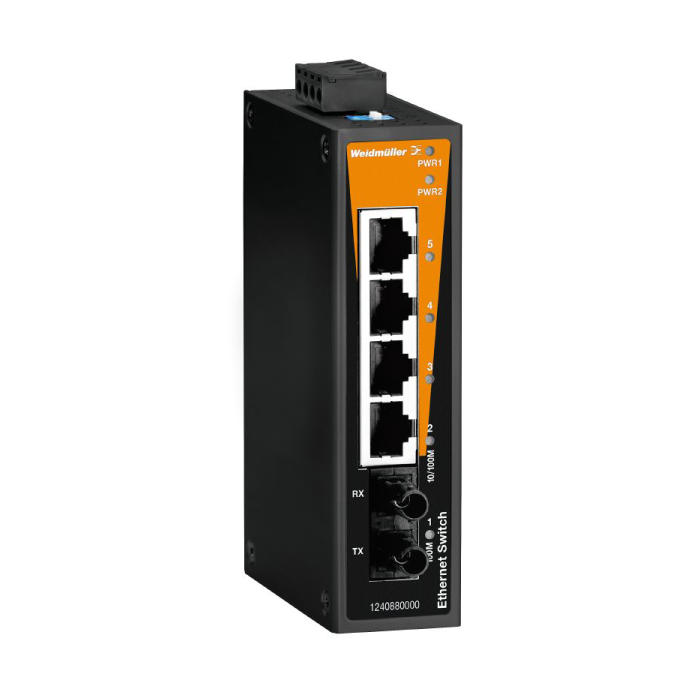

IE-SW-BL05-4TX-1ST
IE-SW-BL05-4TX-1ST:
- Fast Ethernet, network switch, unmanaged.
- Number of ports: 4x RJ45, IP30, -10°C to 60°C.
- Variations including 5 or 8 ports.
- Gigabit Ethernet Variations.
- Durable metal casing.
- A compact design.
- Two redundant power inputs (12/24/48 V DC).
- Variations in copper and fiber-optic interfaces (multi-mode and single mode).
- Our extensive approvals include CE, FCC, cULus, Class I Div. 2, ATEX Zone 2, and DNV-GL.
PN48 ISwitch Filter criteria:
- Highest speed: Fast Ethernet.
- Input voltage type: DC.
- Mounting type: DIN- Rail.
- Type of switch: Unmanaged.
Specifications dimensions and weights:
- Depth: 70 mm.
- Depth (inches): 2.756 inch.
- Height: 115 mm.
- Height (inches): 4.528 inch.
- Width: 30 mm.
- Width (inches): 1.181 inch.
- Net weight: 175 g.
Temperatures:
- Storage temperature: -40 °C - 85 °C.
- Operating temperature: -10 °C - 60 °C.
- Humidity: 5 to 95 % (non-condensing).
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 9229992a-00b9-4096-8962-200a7f33e289.
EMC conformity and approvals:
- EMC standards: EN 55032, EN 55035, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz - 6 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100A/m.
- Explosive risk zone: UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA IIC T4 Gc.
- Free fall: According to IEC 60068-2-32.
- Safety standard: UL508.
- Ship use: DNV.
- Shock: according to IEC 60068-2-27.
- Vibration: according to IEC 60068-2-6.
Environmental conditions:
- Humidity: 5 to 95 % (non-condensing).
- Operating temperature, max.: 60 °C.
- Operating temperature, min.: -10 °C.
- Storage temperature, max.: 85 °C.
- Storage temperature, min.: -40 °C.
Fibre optic transceiver characteristics:
- Transmission rate: 100 Mbps.
- Transceiver type: Multi mode.
- Connector type: ST-Duplex.
- Transmission distance, typ.: 5 km.
- Wavelength:
- typ.: 1,300 nm.
- Wavelength: TX.
- min.: 1,260 nm.
- max.: 1,360 nm.
- Wavelength: RX.
- min.: 1,100 nm.
- max.: 1,600 nm.
- Receive power:
- min.: -32 dBm.
- max.: -3 dBm.
- Transmission power:
- min.: -32 dBm.
- max.: -3 dBm.
- Link-budget: 12 dB.
Guarantee:
- Time interval: 5 years.
Interfaces:
- Fibre-optic ports: 100BaseFX ports (SC connector), multimode.
- Function DIP switch: 1x for enabling/disabling the broadcast storm protection.
- LED indicator: PWR1, PWR2, 10/100M (TP-Port), 100M (fibre-optic port).
- Number of ports: 4 x RJ45, 1 * SC Single-mode.
- RJ45 ports: 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.
MTBF:
- According to Standard: Telcordia (Bellcore), GB.
- Operating time (hours), min.: 3,040,784 h.
Power supply:
- Connection type: 1 removable 4-pin terminal block.
- Current consumption: 0.11 A at 24 V.
- Overload current protection: 1.1 A.
- Reverse polarity protection: Available.
- Voltage supply: 12/24/48 V DC, 2 redundant inputs.
- Voltage supply range:
- Voltage type: DC.
- Voltage, min.: 9.6 V.
- Voltage, max.: 60 V.
Switch characteristics:
- Bandwidth backplane: 1 Gbit/s.
- MAC table size: 1 K.
- Packet buffer size: 448 kBit.
Technical data:
- Housing main material: Aluminium.
- Protection degree: IP30.
- Speed: Fast Ethernet.
- Switch: unmanaged.
- Type of mounting: DIN rail, Panel (with optional mounting kit).
Technology:
- Data switching: Store and Forward.
- Flow control: IEEE 802.3x flow control, Back pressure flow control.
- Standard: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control.
