Specifications:

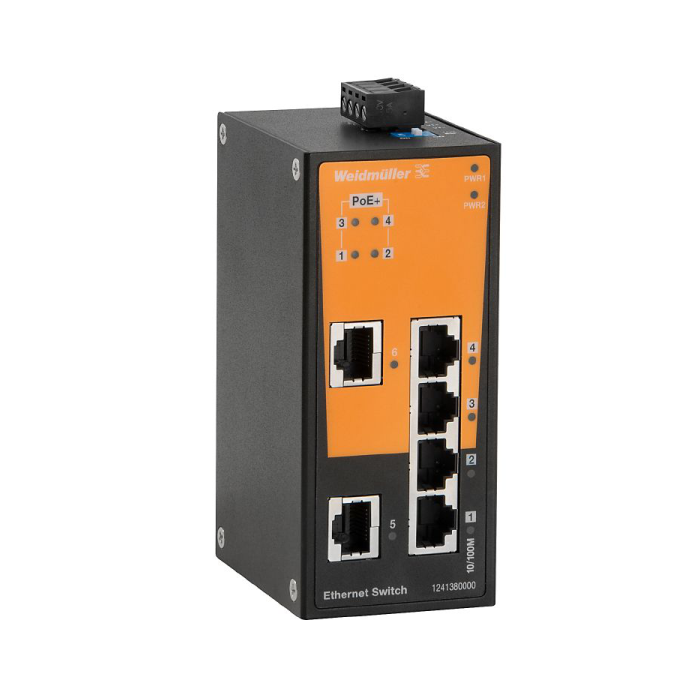

• Version: Network switch, unmanaged PoE, Fast Ethernet.
• Quantity: 1.
• Depth: 70 mm.
• Height: 114 mm.
• Width: 50 mm.
• Storage temperature: -40 °C...85 °C.
• Operating temperature range: -10 °C...60 °C.

Environmental conditions:

• Humidity: 5 to 95 % (non-condensing).
• Operating temperature, max.: 60 °C.
• Operating temperature, min.: -10 °C.
• Storage temperature, max.: 85 °C.
• Storage temperature, min.: -40 °C.

Interfaces:

• Function DIP switch: Broadcast storm protection enable/disable.
• LED indicator: PWR1, PWR2, 10/100M (TP-Port), PoE.
• Number of ports: 2 RJ45 10/100 Base T (X), 4 RJ45 10/100 Base T (X) PoE+.
• RJ45 ports: 10/100 Base T (X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.

PoE output current:

• Standard: IEEE 802.3af.
• Output current: 350 Ma.
• Standard: IEEE 802.3at.
• Output current: 600 mA.

PoE output power:

• Standard: IEEE 802.3af.
• Output power: 15.4 W.
• Standard: IEEE 802.3at.
• Output power: 30 W.

PoE pin assignment:

• Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI.

Total PoE power budget:

• Voltage type: DC.
• Voltage, min.: 12 V.
• Voltage, max.: 17 V.
• Power budget: 62 W.
• Voltage type: DC.
• Voltage, min.: 18 V.
• Voltage, max.: 57 V.
• Power budget: 120 W.

Power supply:

• Connection type: 1 removable 4-pin terminal block.
• Inrush current: 64.56 A at 48 V DC (0.1 to 1 MS).
• Overload current protection.
• Power consumption: max. 13.2 W (without PD´s consumption).
• Power loss: 36.4 BTU/h.
• Reverse polarity protection.
• Voltage supply: 12/24/48 V DC, 2 redundant inputs.

Current consumption:

• Voltage: 12 V.
• Current: 6.19 A.
• Voltage: 24 V.
• Current: 5.55 A.
• Voltage: 48 V.
• Current: 2.71 A.

Voltage supply range:

• Voltage type: DC.
• Voltage, min.: 12 V.
• Voltage, max.: 57 V.

Technical data:

• Housing main material: Aluminum.
• Protection degree: IP30.
• Speed: Fast Ethernet.
• Switch: unmanaged PoE.
• Type of mounting: DIN rail.
