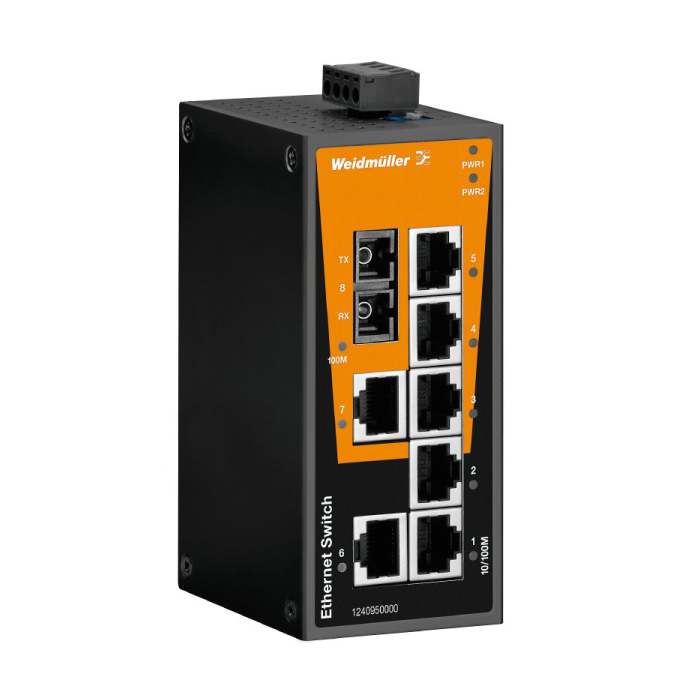

Specifications dimensions and weights:

• Depth: 70 mm.
• Depth (inches): 2.756 inch.
• Height: 115 mm.
• Height (inches): 4.528 inch.
• Width: 50 mm.
• Width (inches): 1.181 inch.
• Net weight: 275 g.

Temperatures:

• Storage temperature: -40 °C - 85 °C.
• Operating temperature: -10 °C - 60 °C.
• Humidity: 5 to 95 % (non-condensing).

Environmental Product Compliance:

• REACH SVHC: Lead 7439-92-1.
• SCIP: 9229992a-00b9-4096-8962-200a7f33e289.

EMC conformity and approvals:

• EMC standards: EN 55032, EN 55035, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz - 6 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100A/m.
• Explosive risk zone: UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA IIC T4 Gc.
• Free fall: According to IEC 60068-2-32.
• Safety standard: UL508.
• Ship use: DNV.
• Shock: according to IEC 60068-2-27.
• Vibration: according to IEC 60068-2-6.

Environmental conditions:

• Humidity: 5 to 95 % (non-condensing).
• Operating temperature, max.: 60 °C.
• Operating temperature, min.: -10 °C.
• Storage temperature, max.: 85 °C.
• Storage temperature, min.: -40 °C.

Fibre optic transceiver characteristics:

• Transmission rate: 100 Mbps.
• Transceiver type: Single mode.
• Connector type: SC-Duplex.
• Transmission distance, typ.: 40 km.
• Wavelength:
• typ.: 1,310 nm.
• Wavelength: TX.
• min.: 1,280 nm.
• max.: 1,340 nm.
• Wavelength: RX.
• min.: 1,100 nm.
• max.: 1,600 nm.
• Receive power:
• min.: -34 dBm.
• max.: -3 dBm.
• Transmission power:
• min.: -34 dBm.
• max.: -3 dBm.
• Link-budget: 29 dB.
• Note: When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.

Guarantee:

• Time interval: 5 years.

Interfaces:

• Fibre-optic ports: 100BaseFX ports (SC connector), single mode.
• Function DIP switch: 1x for enabling/disabling the broadcast storm protection.
• LED indicator: PWR1, PWR2, 10/100M (TP-Port), 100M (fibre-optic port).
• Number of ports: 7 x RJ45, 2 * SC Single-mode.
• RJ45 ports: 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.

MTBF:

• According to Standard: Telcordia (Bellcore), GB.
• Operating time (hours), min.: 2,428,212 h.

Power supply:

• Connection type: 1 removable 4-pin terminal block.
• Current consumption: 0.17 A at 24 V.
• Overload current protection: 1.1 A.
• Reverse polarity protection: Available.
• Voltage supply: 12/24/48 V DC, 2 redundant inputs.
• Voltage supply range:
• Voltage type: DC.
• Voltage, min.: 9.6 V.
• Voltage, max.: 60 V.

Switch characteristics:

• Bandwidth backplane: 1.6 Gbit/s.
• MAC table size: 1 K.
• Packet buffer size: 512 kBit.

Technical data:

• Housing main material: Aluminium.
• Protection degree: IP30.
• Speed: Fast Ethernet.
• Switch: unmanaged.
• Type of mounting: DIN rail.

Technology:

• Data switching: Store and Forward.
• Flow control: IEEE 802.3x flow control, Back pressure flow control.
• Standard: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control.
