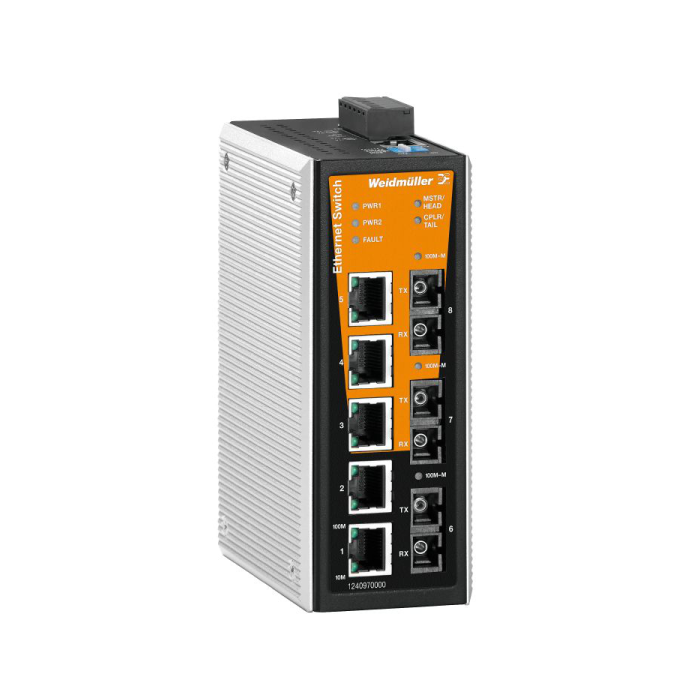

IE-SW-VL08MT-5TX-1SC-2SCS
Pricing available on request
Description:
- Weidmuller's Value Line includes both unmanaged and managed switches in a high-quality metal enclosure with an IP 30 rating.
- The equipment can be supplied with Fast Ethernet and Gigabit Ethernet interfaces.
- Many useful management features, like quick ring redundancy, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and error alerting via email or a relay, are supported by Value Line managed switches.
- Either the web-based management interface or the dip switch located on top of the switch can be used to easily adjust the ring redundancy.
- Unmanaged plug-and-play switches in a high-quality aluminum enclosure (IP 30).
- Price-conscious mid-range.
- Managed switches for connecting to a flexible network architecture.
- A fully unmanaged gigabit switch with eight ports.
- CE, FCC, cULus, Class I Div. 2, ATEX, DNV, and GL approvals.
Specifications:
- Version: Network switch, managed, Fast Ethernet.
- Quantity: 1.
- Depth: 105 mm.
- Height: 135 mm.
- Width: 53.6 mm.
- Storage temperature: -40 °C...85 °C.
- Operating temperature range: -40 °C...75 °C.
Environmental conditions:
- Humidity: 5 to 95 % (non-condensing).
- Operating temperature, max.: 75 °C.
- Operating temperature, min.: -40 °C.
- Storage temperature, max.: 85 °C.
- Storage temperature, min.: -40 °C.
Interfaces:
- Alarm contact: 1 relay output with a current capacity of 1 A at 24 V DC.
- Console port interface: RS-232.
- Fiber-optic ports: 100BaseFX ports (SC connector), Multimode, Single mode.
- Function DIP switch: Turbo-Ring, Master, Coupler, Reserve.
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port), 100M (fiber-optic port).
- Number of ports: 5x RJ45, 1 SC Multi-mode, 2 SC Single mode.
- RJ45 ports: 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.
Power supply:
- Connection type: 1 removable 6-pin terminal block.
- Current consumption, Voltage: 24 V.
- Current consumption, Current: 0.32 A.
- Overload current protection.
- Reverse polarity protection.
- Voltage supply: 12/24/48 V DC, 2 redundant inputs.
- Voltage type: DC.
- Voltage, min.: 9.6 V.
- Voltage, max.: 60 V.
Technical data:
- Housing main material: metal.
- Protection degree: IP30.
- Speed: Fast Ethernet.
- Switch: managed.
- Type of mounting: DIN rail, Panel (with optional mounting kit).
| SKU | 1345240000 |
|---|---|
| Brand | Weidmuller |
