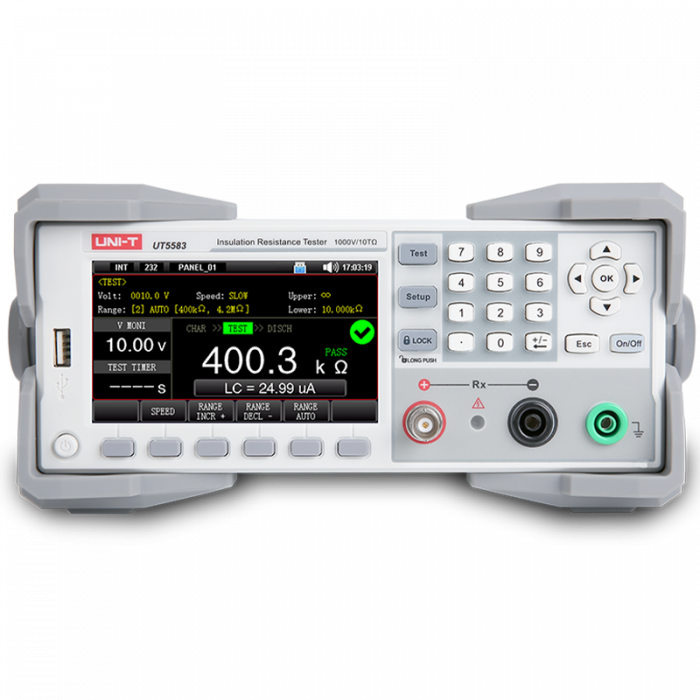

Insulation Resistance Tester, UT5583 1V-1000V, 25mA
UT5583 Series, Insulation Resistance Tester:
- TFT-LCD display, 4.3 inches.
- Real-time monitoring of output voltage.
- Insulation resistance and leakage current are both displayed simultaneously.
- You can change the charging, testing, and discharging times.
- Full-range open-circuit reset and calibration function.
- Capacitive materials' contact check feature.
- Choose the five-digit or four-digit digit display option.
- The comparator function enables qualified and unqualified sorting.
- Setup a function for sorting judgment sounds.
- Rapid discharge capability.
- Recording of U disk data.
- Can hold 100 test files and supports U-disk file access.
- Rich interface with support for SCPI and MODBUS protocols.
Specifications:
- UT5583 Series, Insulation Resistance Tester.
- Measurement parameters Insulation resistance, leakage current.
- Output voltage program control 1V-1000V(DC): ≥10V, step 1V <10V, step 0.1V.
- Voltage accuracy ≥10V, 1%±1V <10V, 10%±0.1V.
- Measurement range Resistance:10kΩ-10TΩ Current:100pA-250uA.
- Test speed Fast: 30ms/time, medium speed: 100ms/time, slow speed: 500ms/time.
- Range mode Auto, Locked, Nominal (select best range based on comparator setting).
- Max. charge current 25mA±5mA.
- Interface RS232C, USB HOST, LAN, RS485; HANDLER, FOOT.
- Power AC 110V/220V 47-63Hz.
- Display mode 4.3-inch LCD screen.
- Product size(W×H×D) 215mm×88mm×382.3mm.
| SKU | UT5583 |
|---|---|
| Brand | UNI-T |
