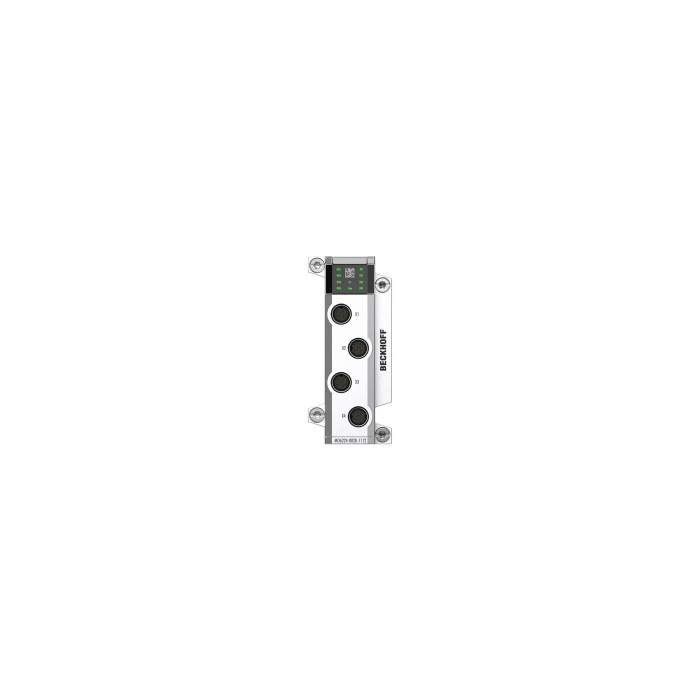

IO-Link, master MO6224-0039-1112

Product category: I/O modules Category/version: communication/gateway Type: IO-Link, master/controller IO-Link Port Class: Class B Channels: 4 Connection method: M12 Output voltage: 24 V DC (-15 %/+20 %) Output current: max. 3.5 A per channel Data direction: bidirectional Safety functions: safe shutdown Data transfer rates: 4.8 kbaud, 38.4 kbaud and 230.4 kbaud Supply voltage from backplane: 24 V DC Baseplate interface: data connector Diagnostics: yes, status and live data via app Distributed clocks: yes Hot swap: yes TwinCAT version: TwinCAT 3 Weight: approx. 250 g Approvals/markings: CE, (UL in preparation) Dimensions (W x H x D): 30 mm × 110 mm × 72 mm Number of rows: 1 Number of slots: 1 Material: zinc and aluminum die-cast Cooling: convection Operating/storage temperature: 0…+50 °C/-25…+85 °C Protect. rating/installation pos.: IP65/67/variable
