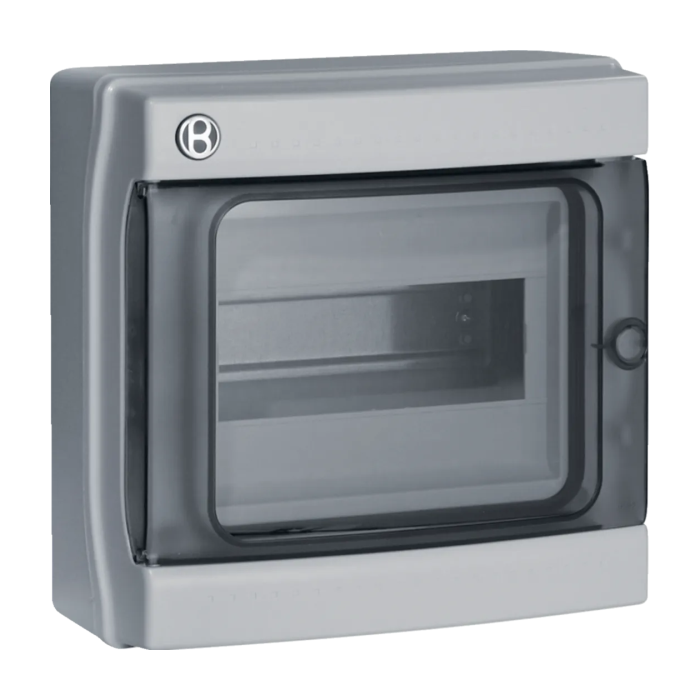

BOCHIOTTI PABLO IP65 18 GRI DB BOX
Description:
- For outdoor wall installations, BOCHIOTTI PABLO IP65 18 GRI DB BOX 06524 is a sturdy and adaptable enclosure.
- This item is a member of the Pablo series, which is renowned for its dependable performance and fine build quality.
- Its construction, which combines tinted polycarbonate and ABS, guarantees its resilience to a range of climatic conditions.
- Its IP65 classification means that it provides good defence against water and dust intrusion, which makes it appropriate for a variety of uses.
- Up to eighteen modules can be included in the design, offering a safe and well-organized solution for electrical installations.
Specifications:
- Product Code: 06524.
- Manufacturer Code: IP65/18GRI.
- Series: Pablo.
- Material: ABS (Halogen Free) and Tinted Polycarbonate (Halogen Free).
- External Dimensions:
- Height: 288 mm.
- Width: 426 mm.
- Depth: 148 mm.
- IP Rating: IP65.
- Number of Modules: 18.
- Mounting Style: Wall Mounting.
- Colour: Grey RAL 7035.
- Standards:
- EN 60670-1: General requirements for boxes and enclosures for electrical accessories.
- EN 60670-24: Requirements for enclosures for housing protective devices.
- EN 62208: General requirements for empty enclosures for low-voltage switchgear and control gear assemblies.
- Resistance:
- Resistant to saline agents, UV radiation, and various chemicals.
- Rated voltage up to 1000 V AC / 1500 V DC.
- Power Dissipation: 37 W.
- Impact Resistance: IK09.
- Protection Class: Insulation class II.
- Glow Wire Test: 960 °C.
- This enclosure is an excellent choice for ensuring the safety and organization of electrical components in demanding environments.
| Brand | Weidmuller |
|---|
