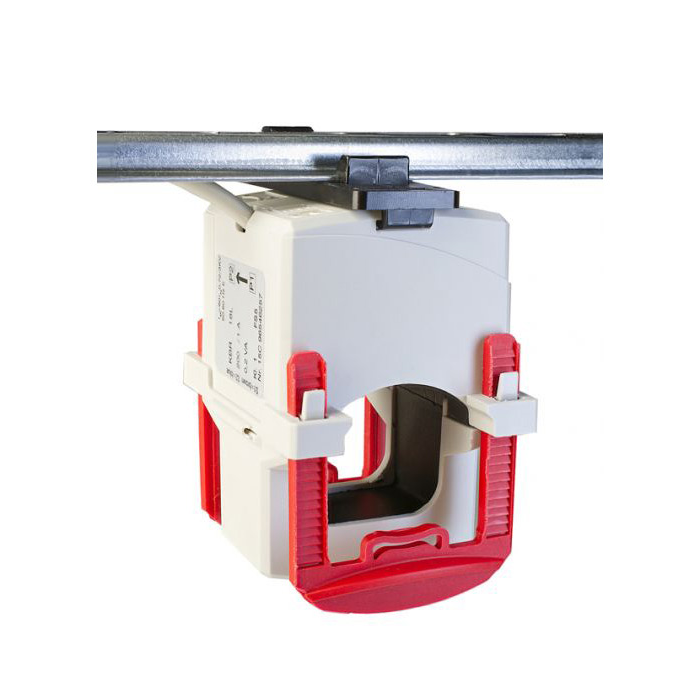

KBR 18L 200/5 CLASS 1 SPLIT CORE
Split-core current transformer, KBR series:
- The split measurement system makes it easier to install existing panel boards simply and eliminates the need for additional mounting.
- To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
- The device is operational as soon as the secondary conductors are connected.
- MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
- Comes with 2 x 1.5 mm2 and a 0.5 m connecting cable.
Specifications:
- KBR 18L - Split-core current transformers (5A secondary - class 1)
- MODEL: KBR 18L
- RATIO: 200/5A
- CONDUCTOR (⌀): 18.4 mm
- DESCRIPTION: Split core current transformer
- CLASS: 1
- VA: 1.5
- DIMENSIONS (MM): (H) 80.1 x (W) 49 x (D) 59
Brand | MBS |
---|
