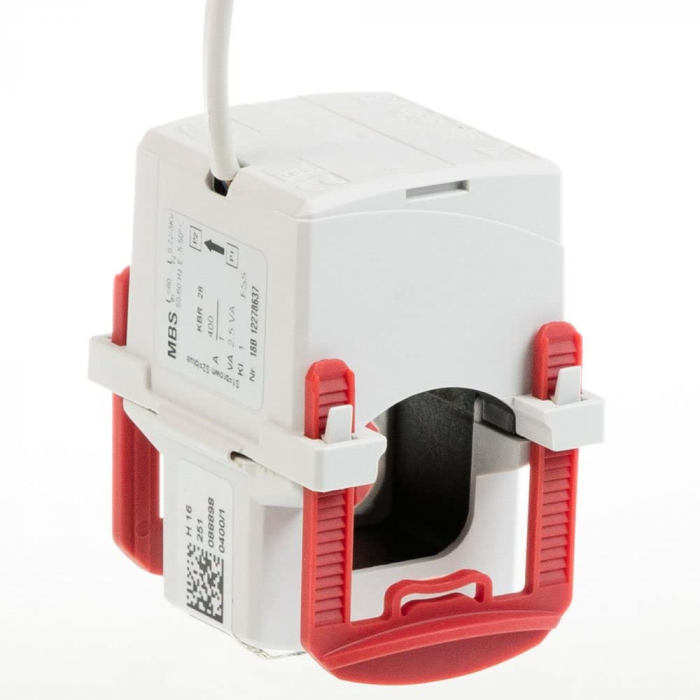

KBR 28 500/5 CLASS 1 SPLIT CORE
Current transformers with split cores, KBR series:
- Without the need for additional mounting, the split measurement system makes installation into pre-existing panel boards straightforward.
- The current transformer's locking mechanism can be easily opened, placed around the primary conductor, and locked to ensure that the circuit is closed.
- The unit is ready for use after the secondary conductors are attached.
- MBS AG current transformers completely comply with both VBG 4 and IEC 61869/1+2 as well as DIN 42600 and VDE 0414/1.
- Comes with two 0.5 m connecting cables measuring 1.5 mm each.
Specifications:
- KBR 28 - Split-core current transformers (5A secondary - class 1)
- MODEL: KBR 28
- RATIO: 500/5A
- CONDUCTOR (⌀): 26 mm
- DESCRIPTION: Split core current transformer
- CLASS: 1
- VA: 3
- DIMENSIONS (MM): (H) 79.5 x (W) 49 x (D) 59
Brand | MBS |
---|
