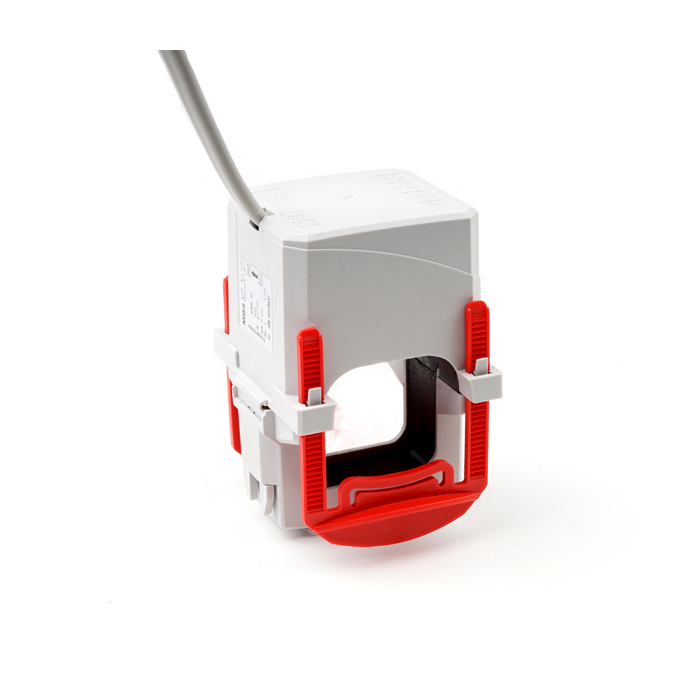

KBR 42 500/5 CLASS 1 SPLIT CORE

ZAR 2,266.50
Out of stock
SKU
42-5003

Split-core current transformers in the KBR series:

  • The split measurement system makes it easier to install existing panel boards simply and eliminates the need for additional mounting.
  • To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
  • The device is operational as soon as the secondary conductors are connected.
  • MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
  • Comes with 2 x 1.5 mm2 and a 0.5 m connecting cable.

Specifications:

  • KBR 42 - Split-core current transformers (5A secondary - class 1)
  • MODEL: KBR 42
  • RATIO: 500/5A
  • CONDUCTOR (⌀): 42.4 mm
  • DESCRIPTION: Split core current transformer
  • CLASS: 1
  • VA: 5
  • DIMENSIONS (MM): (H) 96 x (W) 67 x (D) 69
More Information
Brand MBS
