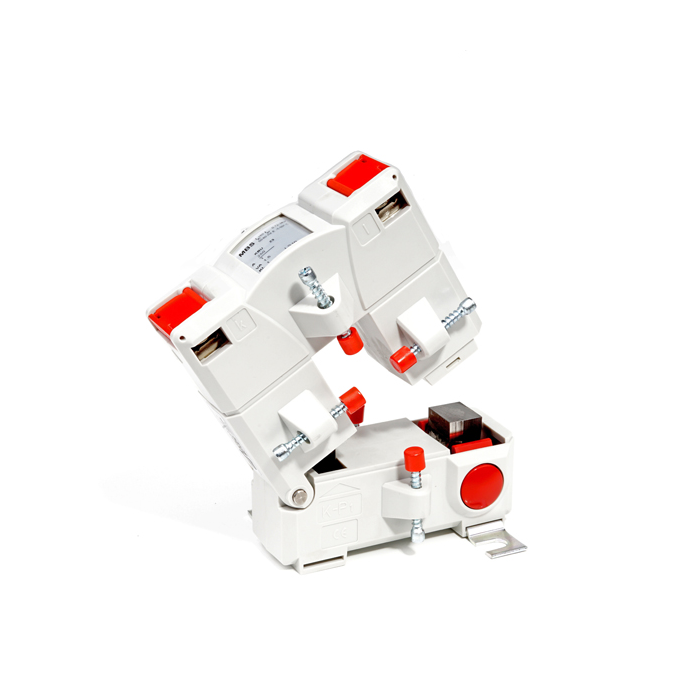

KBU 23 100/5A SPLIT CORE CT cl 3
Overall characteristics:
- E is the isolation class.
- Operating voltage maximum: approximately 0.72 kV.
- 50 Hz is the nominal frequency: alternative frequencies available upon request.
- Ith = 60 x In represents the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1
Specifications:
- KBU 23 split core current transformers (5A secondary - class 1/3),
- Round conductor: Split core,
- Primary bar conductor: 20 x 30 mm max.,
- MODEL KBU 23,
- RATIO 100/5A,
- ROUND CONDUCTOR Split core,
- PRIMARY BAR CONDUCTOR 20 x 50 mm maximum,
- DESCRIPTION Split-core current transformer,
- DIMENSIONS(MM) (H)106 X (W)93 X (D)58,
- CLASS 3,
- VA 1.25,
- DIMENSIONS (MM) (H) 106 x (W) 93 x (D) 58
| Brand | MBS |
|---|
