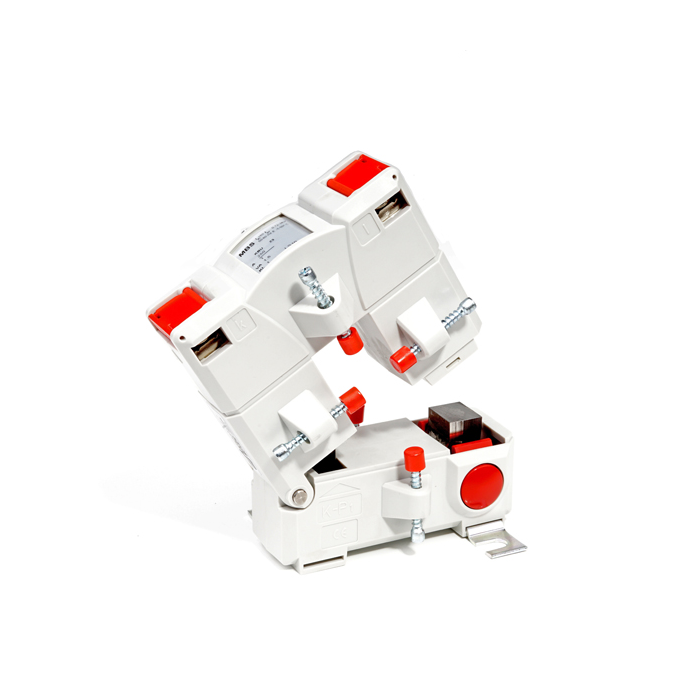

KBU 23 150/5A SPLIT CORE CT cl 3
General details:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
Specifications:
- KBU 23 split core current transformers (5A secondary - class 1/3),
- Round conductor: Split core,
- Primary bar conductor: 20 x 30 mm max.,
- MODEL KBU 23, RATIO 150/5A,
- ROUND CONDUCTOR Split core,
- PRIMARY BAR CONDUCTOR 21 x 50 mm maximum,
- DESCRIPTION Split-core current transformer,
- DIMENSIONS(MM) (H)106 X (W)93 X (D)58,
- CLASS 3,
- VA 1.5,
- DIMENSIONS (MM) (H) 106 x (W) 93 x (D) 58
| Brand | MBS |
|---|
