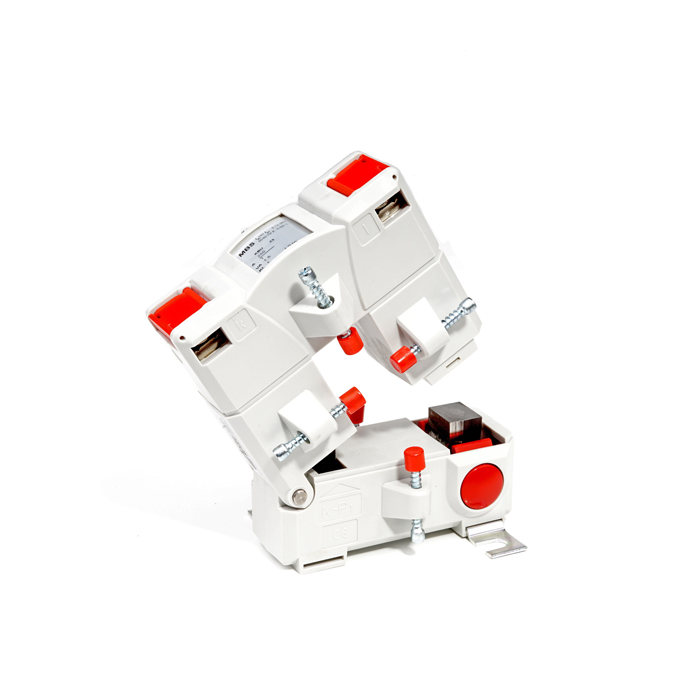

KBU 23 250/5A SPLIT CORE CT cl 1
General parameters:
- Category of isolation: E.
- The highest voltage that can be used is 0.72 kV.
- 50Hz as the nominal frequency (others upon request).
- For thermal short-time current, the nominal value is Ith = 60 x In.
- Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
- The MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
Specifications:
- KBU 23 split core current transformers (5A secondary - class 1/3),
- Round conductor: Split core,
- Primary bar conductor: 20 x 30 mm max.,
- MODEL KBU 23,
- RATIO 250/5A,
- ROUND CONDUCTOR Split core,
- PRIMARY BAR CONDUCTOR 23 x 50 mm maximum,
- DESCRIPTION Split-core current transformer,
- DIMENSIONS(MM) (H)106 X (W)93 X (D)58,
- CLASS 1,
- VA 1.5,
- DIMENSIONS (MM) (H) 106 x (W) 93 x (D) 58
| Brand | MBS |
|---|
