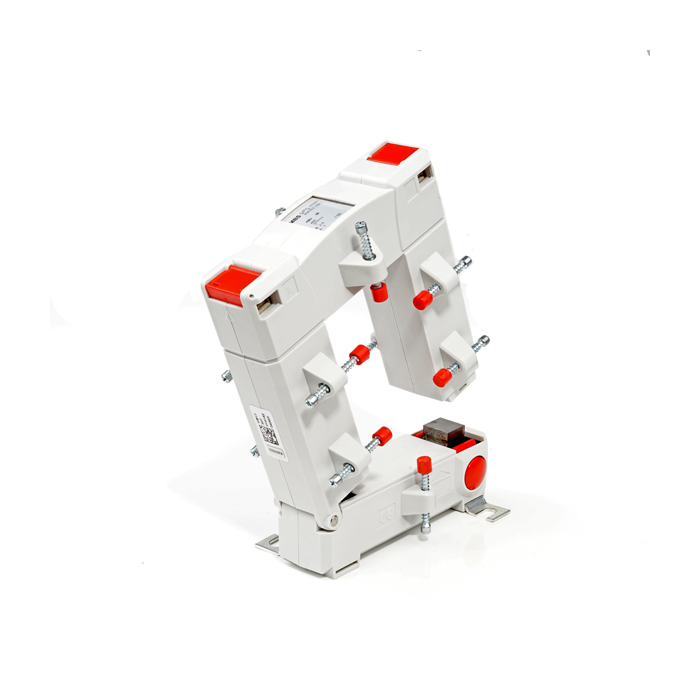

KBU 58 300/5A SPLIT CORE CT cl 1
Split-core current transformer:
- Without the need for additional mounting, the split measurement system makes it easier to install into already-existing panel boards.
- To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
- The device can be used as soon as the secondary conductors are connected.
Specifications:
- KBU 58 split core current transformers (5A secondary - class 1),
- Primary bar conductor: 50 x 80 mm max.,
- MODEL KBU 58,
- RATIO 300/5A,
- ROUND CONDUCTOR Split core,
- PRIMARY BAR CONDUCTOR 50 x 80 mm maximum,
- DESCRIPTION Split-core current transformer,
- DIMENSIONS(MM) (H)158 X (W)125 X (D)58,
- CLASS 1,
- VA 2.5,
- DIMENSIONS (MM) (H) 158 x (W) 125 x (D) 58
General details:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
| Brand | MBS |
|---|
