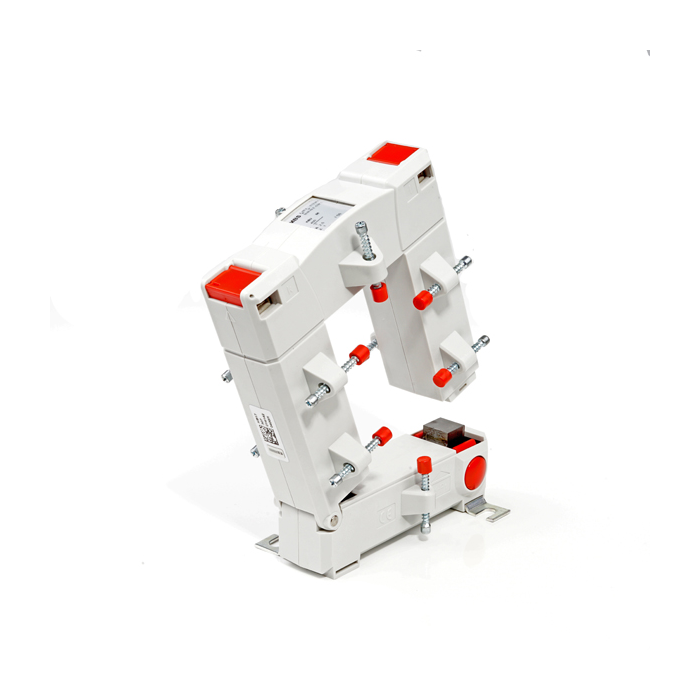

KBU 58 400/5A SPL/CORE CT cl 0.5
Broad parameters:
- E is the isolation class.
- Operating voltage maximum: 0.72 kV.
- Frequency nominal: 50 Hz (others upon request).
- Thermal short-time current nominal: Ith = 60 x In.
- FS 5, up to 1500 A nominal current, is the over-current limiting factor.
- MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1 standards.
Specifications:
- KBU 58 split-core current transformers (5A secondary - class 1),
- Primary bar conductor: 50 x 80 mm max.,
- MODEL KBU 58,
- RATIO 400/5A,
- ROUND CONDUCTOR Split core,
- PRIMARY BAR CONDUCTOR 50 x 80 mm maximum,
- DESCRIPTION Split-core current transformer,
- DIMENSIONS(MM) (H)158 X (W)125 X (D)58,
- CLASS 0.5,
- VA 2.5
| Brand | MBS |
|---|
