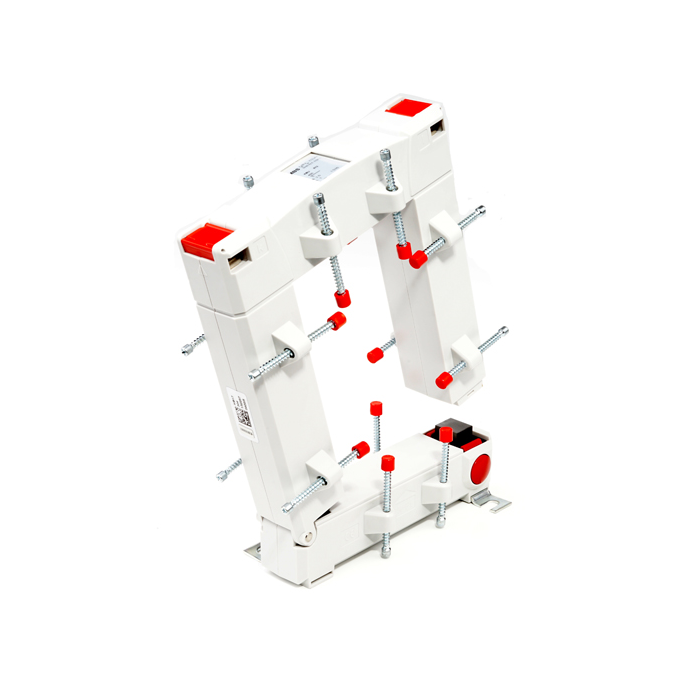

KBU 812 1000/5A SPL/CORE CT cl 1
Split-core current transformer:
- Without the need for additional mounting, the split measurement system makes it easier to install into already-existing panel boards.
- To ensure that the circuit is closed, just open the current transformer's locking mechanism, place it around the primary conductor, and lock.
- The device can be used as soon as the secondary conductors are connected.
Specifications:
- KBU 812 split core current transformers (5A secondary - class 1).
- Primary bar conductor: 80 x 12 mm max.
- MODEL KBU 812.
- RATIO 1000/5A.
- ROUND CONDUCTOR Split core.
- PRIMARY BAR CONDUCTOR 80 x 12 mm maximum.
- DESCRIPTION Split-core current transformer.
- DIMENSIONS (MM) (H)198 X (W)155 X (D)58.
- CLASS 1.
- VA 10.
Features:
- Class of isolation: E.
- Nominal frequency: 50 Hz (others upon request).
- Maximum working voltage: Um 0.72 kV.
- Ith = 60 x In is the nominal thermal short-time current.
- Over-current limiting factor: FS 5 for nominal currents up to 1500 A.
- MBS AG current transformers completely comply with VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1.
| SKU | 80098 |
|---|---|
| Brand | MBS |
