KBU 816 1600/5A SPL/CORE CT cl 1

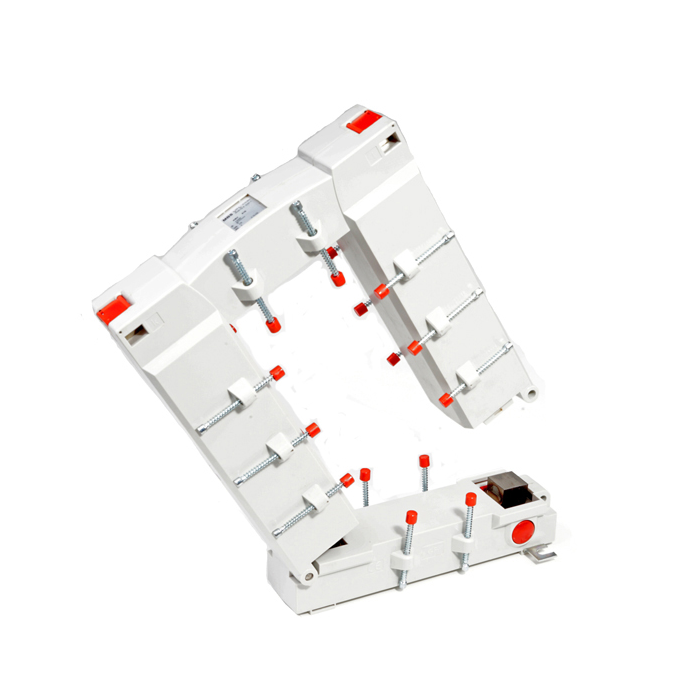

Current transformer with split core:
- Without the need for additional mounting, the split measurement system makes it easier to install into already-existing panel boards.
- The current transformer's locking mechanism can be easily opened, placed around the primary conductor, and locked to ensure that the circuit is closed.
- The unit is operational after the secondary wires are connected.
Specifications:
- KBU 816 split core current transformers (5A secondary - class 1).
- Primary bar conductor: 80 x 160 mm max.
- MODEL KBU 816.
- RATIO 1600/5A.
- ROUND CONDUCTOR Split core.
- PRIMARY BAR CONDUCTOR 80 x 160 mm maximum.
- DESCRIPTION Split-core current transformer.
- CLASS 1.
- VA 15.
- DIMENSIONS (MM) (H) 243 x (W) 195 x (D) 79.
Features:
- E is the isolation class.
- Up to 0.72 kV is the maximum operating voltage.
- Frequency nominal: 50 Hz (others upon request).
- Thermal short-time current nominal: Ith = 60 x In.
- FS 5, up to 1500 A nominal current, is the over-current limiting factor.
- MBS AG current transformers fully abide by VBG 4, DIN EN 60044/1, DIN 42600, and DIN VDE 0414/1 standards.
| SKU | 80147 |
|---|---|
| Brand | MBS |
